PF Series

PF Series

Type

Hydraulic Oil Cooling

Cooling Medium

Water

Application

Industrial

Technology

Plate / Stainless Steel

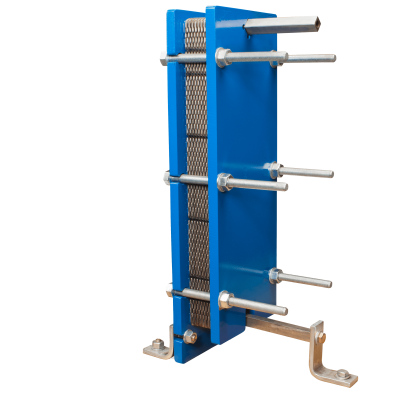

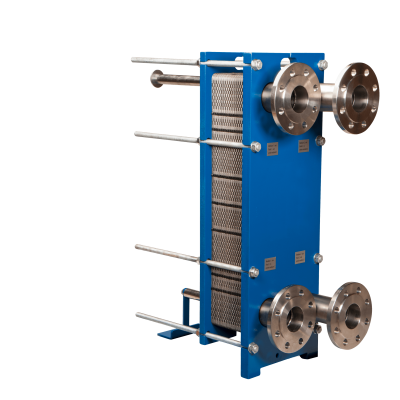

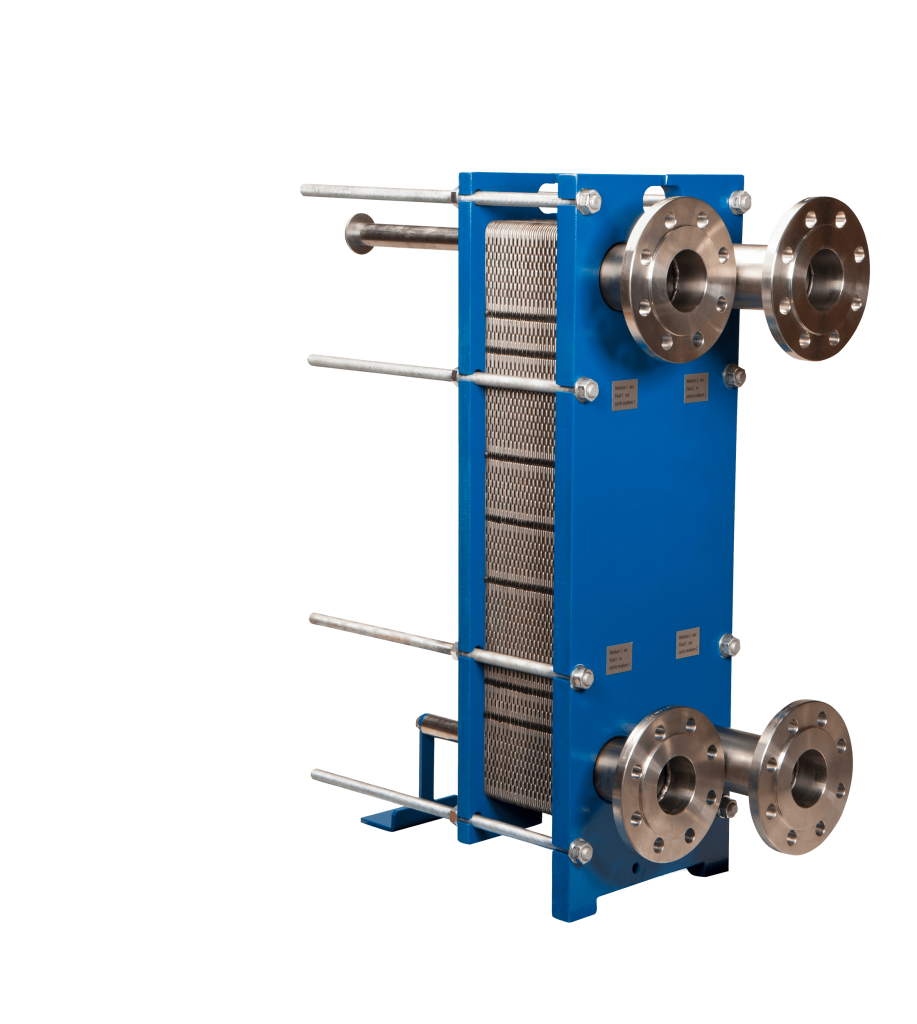

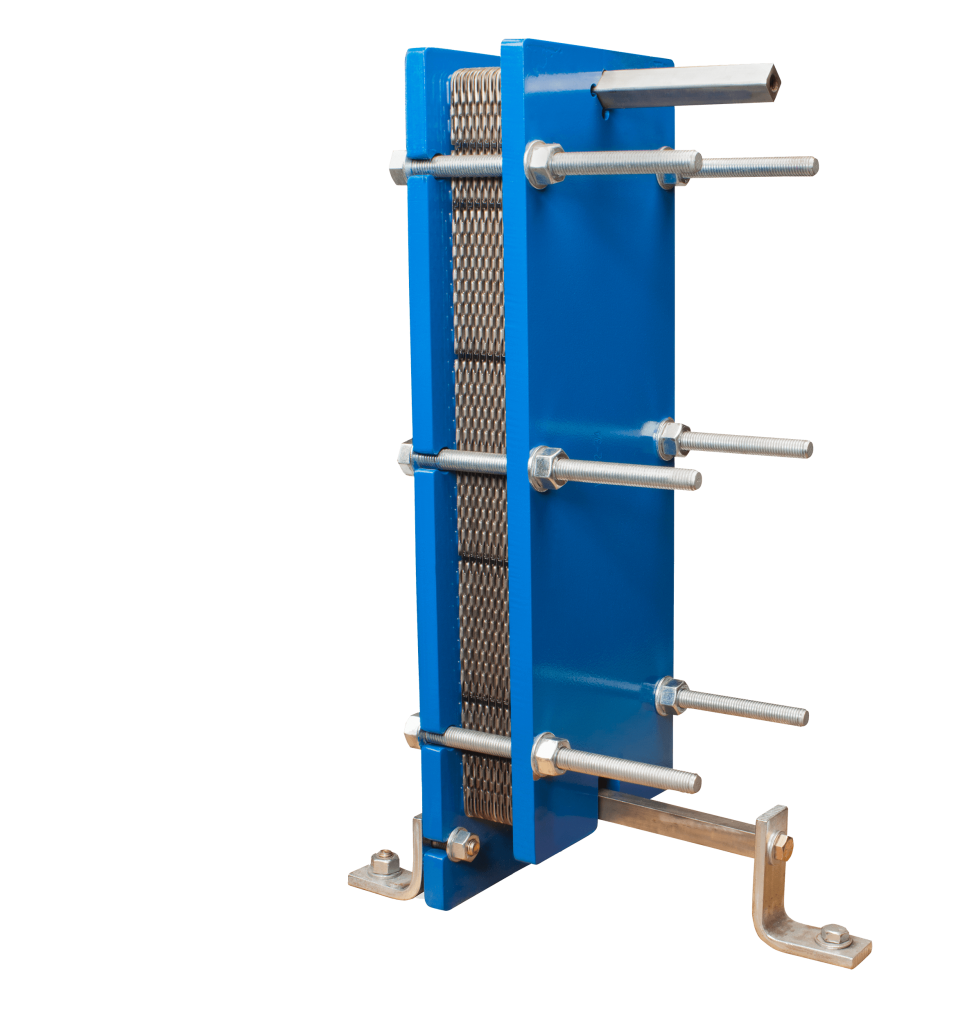

The PF Series is a high-performing gasketed plate style heat exchanger.  Able to handle large volumetric flows with low temperature drops, the design features large heat exchanging surfaces in a very compact, space-saving frame.  The units can be readily expanded or reduced to accommodate changes in performance.  This cost effective series is ideal for oil-to-water applications.  Titanium plates are available for salt water service.

Consult catalog for additional sizes and technical information.

Documents

Brochures

3D Model Coming Soon.

Our 3D Product Configurator will allow you to build up the cooler with specific options that are required for your application, view what you have created in 3D, then download the model directly into your format to complete your modeling project.

3D Product Configurator

  • Gasketed plate style heat exchanger
  • Oil to water applications
  • High performance
  • Can be disassembled for internal cleaning
  • Plates can be added /removed to accommodate change in performance
  • Medium to very high flows
  • PED / ASME / CRN codings available
  • Special plate material options: titanium, hastelloy, SMO-254, nickel, 904L
  • Special gasket material options: high temp NBR (150˚C), EPDM, FPM, PTFE (Teflon®)
  • Plate profile options: a deep gap, lower pressure drop plates for high viscosity fluids (Type S). Select models also offer a shallower gap, higher pressure drop & performance plates (Type X).
  • All catalog product is available with short lead-times
  • Expert application engineers are available to select and size the right product for your application
  • Custom designs are available
  • Design Pressure 150 PSI (10.5 BAR)
  • Design Temperature 230°F (110°C)
  • Minimum Working Temperature 32°F (0°C)
  • Internal
  • Plates – Stainless steel
  • Gaskets – NBR-clip
  • External Frame
  • Connections – Carbon steel, stainless steel
  • Frame Plate – Carbon steel
  • Pressure Plate – Carbon steel
  • Tie Rods – Zinc plated steel
  • Carry Bar – Zinc coated steel, stainless steel
  • Guide Bar – Zinc coated steel, stainless steel
  • Column (if applicable) – Carbon steel, aluminum
  • Mounting Feet – Carbon steel
  • Fasteners – Zinc plated steel
  • Other materials are available
