AOC Series – Mobile
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling
Application
Mobile Applications
Technology
Air Cooled, Copper Tube / Aluminum Fin
Mobile Air-Cooled Hydraulic Oil Cooler — DC or Hydraulic Fan Drive

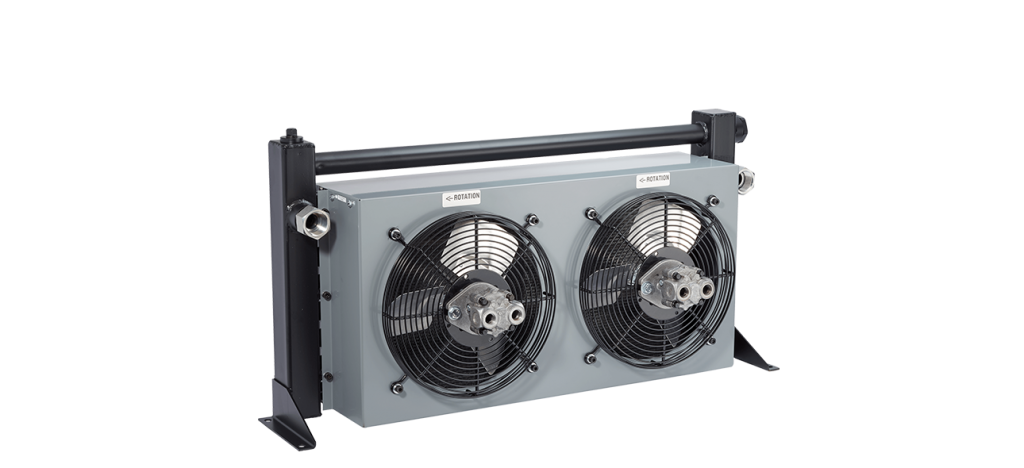

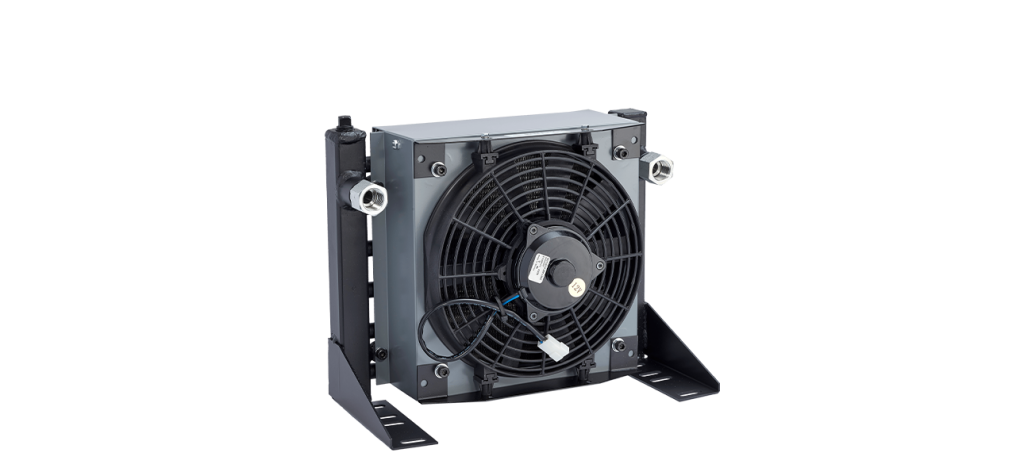

The Thermal Transfer Products Mobile AOC Series is a cost-effective air-cooled hydraulic oil cooler built for mobile and off-highway equipment. It uses a copper-tube, aluminum-fin core with a high-performance air-side fin design, and is offered with 12- or 24-volt DC fans or a long-life hydraulic fan motor drive, in single- or dual-fan configurations, making it ideal for low-flow power unit applications.
Because it’s designed for remote mounting away from engine cooling, the AOC doesn’t block the main engine radiator — a key advantage on machinery where space and airflow are tight. Low-amp-draw DC motors reduce electrical load, and the heavy-duty construction stands up to demanding off-road environments. A serviceable, removable stainless air filter prevents air-side core blockage from dust and debris, and aggressive turbulators deliver optimal heat rejection at lower flow rates.
Options include a built-in pressure bypass (30 or 60 PSI settings for cold-start protection) and Heresite coating for offshore or corrosive-environment operation. Connections are SAE standard. Maximum operating pressure is 300 PSI with a maximum operating temperature of 350°F. TTP’s XSelector® sizing program — available online and as a mobile app — helps size the right model for your flow, heat load, and space.
Consult catalog for additional sizes and technical information.
Product Features
- Designed for remote mounting away from engine cooling
- Does not block main engine radiator
- Heavy duty construction
- High performance air side fin design
- DC or Long life hydraulic motor fan drives

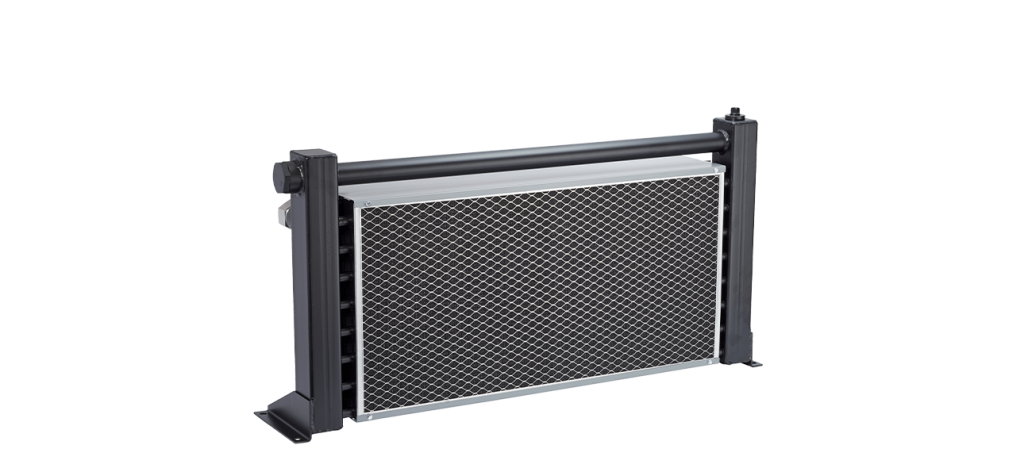

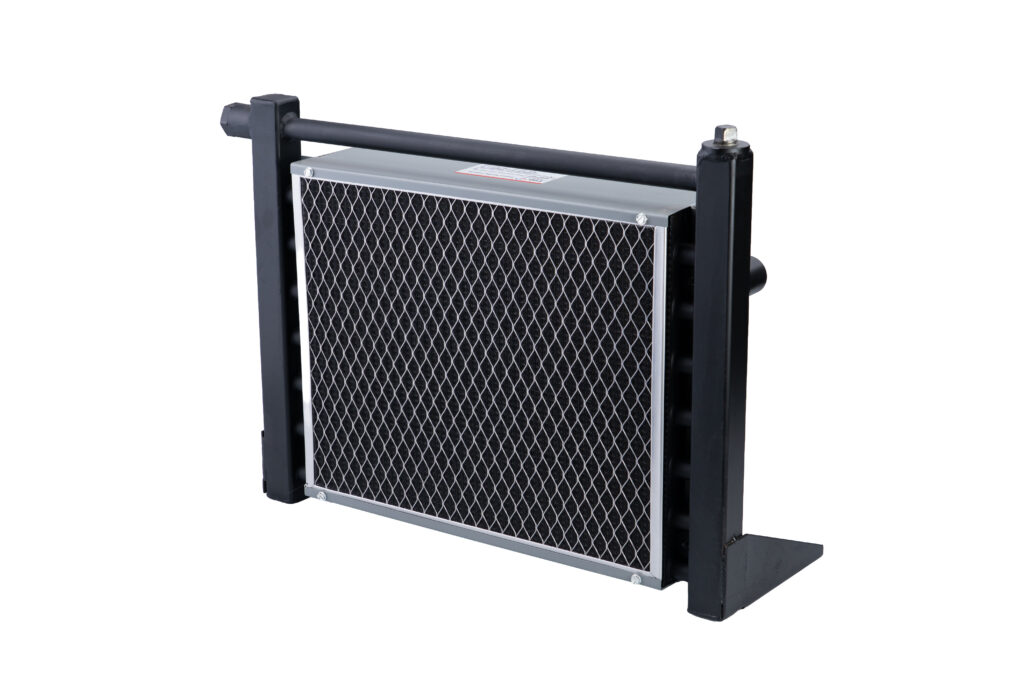

- Core protected by serviceable stainless mesh screen
- 3/4″ tube size
- SAE connections standard
| Ratings | |
|---|---|
| Maximum Operating Pressure | 300 PSI |
| Maximum Operating Temperature | 350°F |
| Oil Flows | Up to 150 GPM (565 lpm) |
| Heat Removal | Up to 90 HP (65 kW) |
| Materials | |
|---|---|
| Tubes | Copper |
| Fins | Aluminum |
| Turbulators | Aluminum |
| Fan Blade | DC Motor – High impact plastic Hydraulic Motor – Aluminum with steel hub |
| Fan Guard | Hydraulic Motor – Steel with black powder coat |
| Manifolds | Steel |
| Connections | Steel |
| Cabinet | Steel with powder coat |
| Filter | Stainless frame with washable media |
| Nameplate | Aluminum |
| 3/4” external valve | Steel |

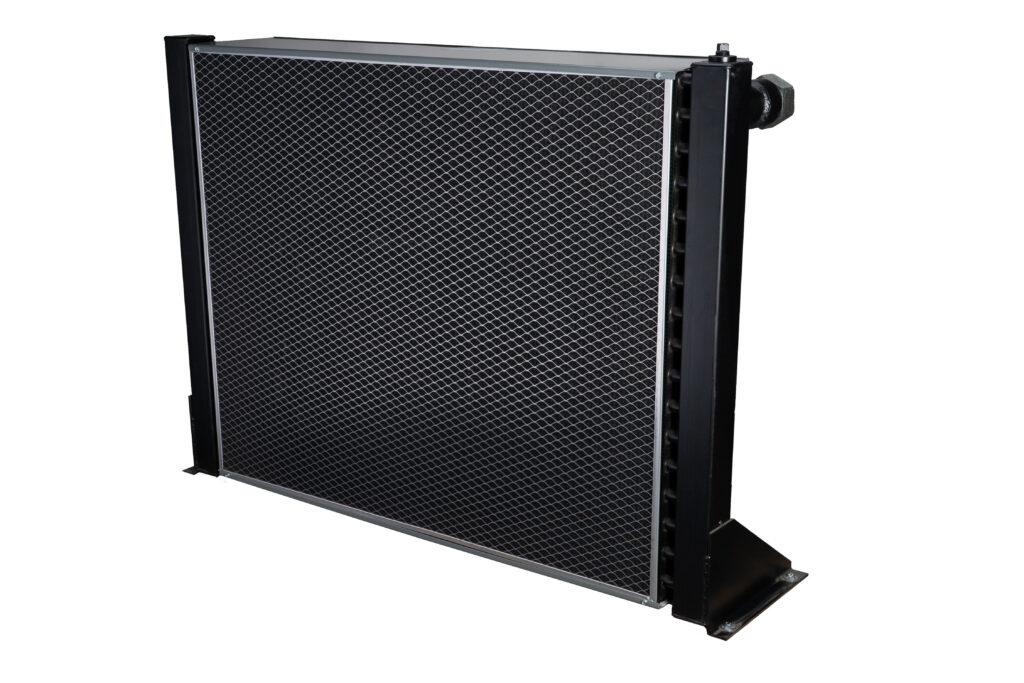

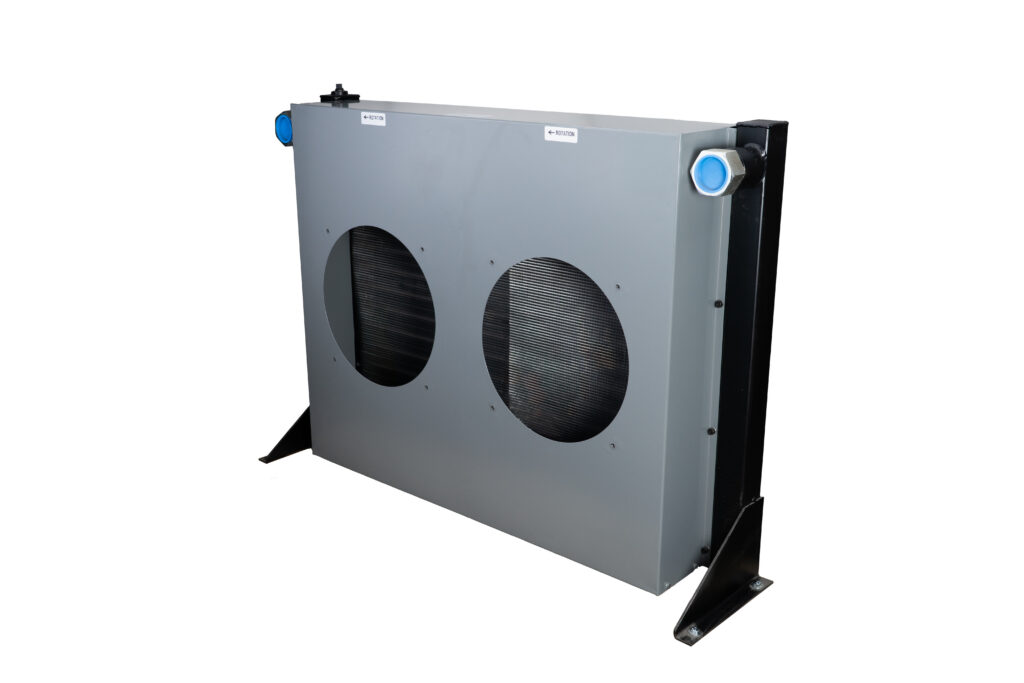

| AOC-37 through AOC-70, 1½” external, all steel valve | |
| Configuration | |
|---|---|
| Tube size | 3/4″ |
| Standard connections | SAE |
| Product Options | |
|---|---|
| Connection options | NPT, BSPP or SAE |
| DC or Long life hydraulic motor fan drives | |
| Built-in serviceable internal pressure bypass | |
- Maximum Operating Pressure 300 PSI
- Maximum Operating Temperature 350°F
- Heat Removal up to 160 HP (120 kW)
- Oil Flows to 150 GPM (330 lpm)
- Tubes – Copper
- Fins – Aluminum
- Turbulators – Aluminum
- Fan Blade – DC Motor – High impact plastic
- Fan Blade – Hydraulic motor – Aluminum with steel hub
- Fan Guard – Hydraulic motor – Steel with black powder coat
- Manifolds – Steel
- Connections – Steel
- Cabinet – Steel with powder coat
- Filter – Stainless frame with washable media
- Nameplate – Aluminum
- 3/4” external, all steel valve.
- AOC-37 through AOC-70, 1½” external, all steel valve
- Built-in serviceable internal pressure bypass
- NPT, BSPP or SAE connections
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures
AOC Mobile Series
Brochures
AOC Mobile Accessories
Technical
AOC Mobile Technical Information
Service Parts
AOC Series Service Parts
Frequently Asked Questions
It’s a cost-effective air-cooled hydraulic oil cooler from Thermal Transfer Products, using a copper-tube/aluminum-fin core, built for mobile and off-highway power unit applications at lower flow rates.
12- or 24-volt DC fans or a long-life hydraulic fan motor drive, in single- or dual-fan configurations. This is the key difference from the Industrial AOC, which uses an AC electric fan drive.
Mounting it away from the engine means it doesn’t block the main engine radiator, and it lets you place cooling where airflow and space allow on mobile machinery.
Maximum operating pressure is 300 PSI and maximum operating temperature is 350°F.
A built-in pressure bypass (30 or 60 PSI for cold-start protection), a serviceable stainless washable air filter, low-amp-draw motors, and Heresite coating for offshore or corrosive service.
Both are mobile coolers, but the MA Series uses a brazed aluminum plate-and-bar core with DC fans, while the Mobile AOC uses a copper-tube/aluminum-fin core with DC or hydraulic fan drives — the AOC being the more economical, lower-flow option.
