BPSW Series
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling
Application
Industrial Applications
Technology
Plate, Stainless Steel

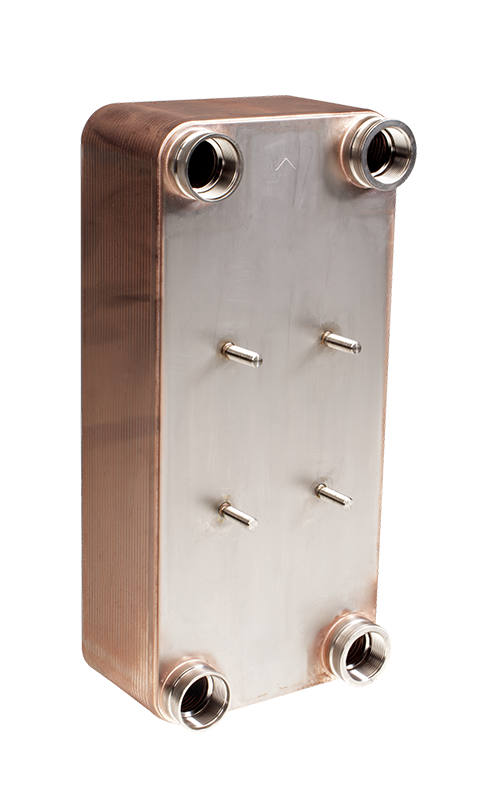

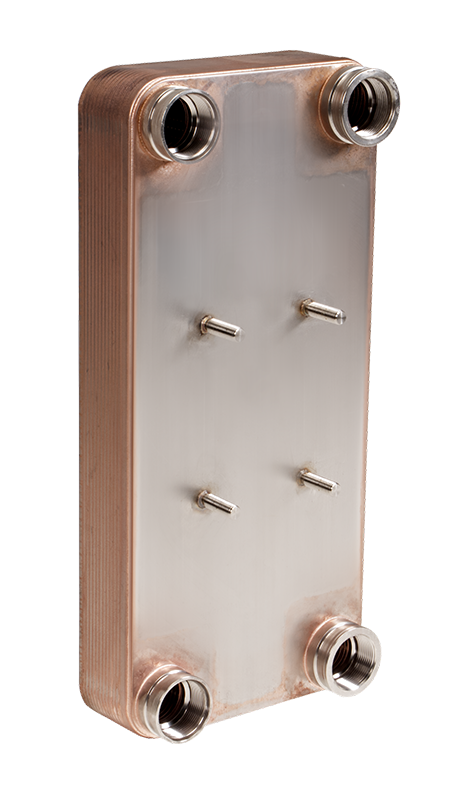

Brazed Plate Heat Exchanger — 316 Stainless Steel, Oil-to-Water Cooling
The Thermal Transfer Products BPSW Series is a rugged, compact, and cost-effective brazed plate heat exchanger built for oil-to-water cooling in industrial systems. Its 316 stainless steel construction and standard SAE connections make it a highly efficient, low-maintenance choice that stays reliable over long service periods — an optimal heat transfer solution where installation space is limited.
Brazed plate technology packs a large amount of heat transfer surface into a small footprint. High plate-channel turbulence drives efficient heat transfer and lets the BPSW perform effectively even at close approach temperatures, where the oil and water temperatures are near each other and cooling is hardest to achieve. Compact dimensions and multiple mounting options simplify integration into tight equipment layouts.
A wide offering of full-featured standard models is available with short lead times and fast delivery worldwide. Typical brazed plate construction is rated to high working pressures and a broad temperature range, making the series suitable for hydraulic oil cooling, lube oil cooling, and general water-to-water process duty. TTP’s XSelector® sizing program — available online and as a mobile app — helps select the right model for your flow, heat load, and approach temperature.
Consult catalog for additional sizes and technical information.
Product Features
- Short lead time
- Stacked plate
- Stainless steel
- Copper brazed (nickel option)
- Oil to water applications
- High performance
- Compact design
- SAE connections
- Corrosion resistant Type 316 stainless steel plates
- Mounting studs standard (except 8×3 plates)
- SAE oil connections, NPT water connections
| Ratings | |
|---|---|
| Maximum Working Pressure | 450 PSI (31 BAR) |
| Minimum Working Temperature | -320°F (-19°C) |
| Maximum Working Temperature | 437°F (225°C) |
| Materials | |
|---|---|
| Plate Material | Fluid Contact – 316 stainless steel |
| Braze Material | Copper (Nickel option) |
| Connectors | 316 stainless steel |
| Stud Bolts | 316 stainless steel |
| Foot Mounting Bracket | Carbon steel |
| Configuration | |
|---|---|
| Oil connections | SAE |
| Water connections | NPT |
| Mounting studs standard (except 8×3 plates) | |
| Product Options | |
|---|---|
| Copper brazed (nickel option) | |
| Foot Mounting Bracket (except 8×3 plates) |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
Documents
Brochures
BPSW Series
Brochures
Water Cooled HE Accessories
Brochures
BP Series Sell Sheet
Technical
BPSW Technical Information
Frequently Asked Questions
It’s a brazed plate heat exchanger from Thermal Transfer Products, made of 316 stainless steel, designed primarily for oil-to-water cooling in industrial applications where space is limited.
Thin corrugated stainless plates are brazed together to form many narrow flow channels. Oil and water flow through alternating channels, and the high turbulence across the plates transfers heat very efficiently in a compact package.
Approach temperature is the gap between the two fluids’ temperatures. High plate-channel turbulence lets the BPSW keep transferring heat effectively even when that gap is small — a case where many coolers struggle.
316 stainless steel plates and connectors with standard SAE connections, plus optional foot brackets for mounting.
The BPSW is a wide range of standard, off-the-shelf models with fast delivery. The BPW Series is made to order — customizable sizes, ports, and material options for application-specific needs. Choose BPSW for speed and standardization, BPW for customization.
Hydraulic oil cooling, compressor and lube oil cooling, and water-to-water process cooling — anywhere a compact, efficient liquid-to-liquid exchanger is needed.
