RM Series
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling
Application
Industrial Applications
Technology
Air Cooled, Copper Tube / Aluminum Fin

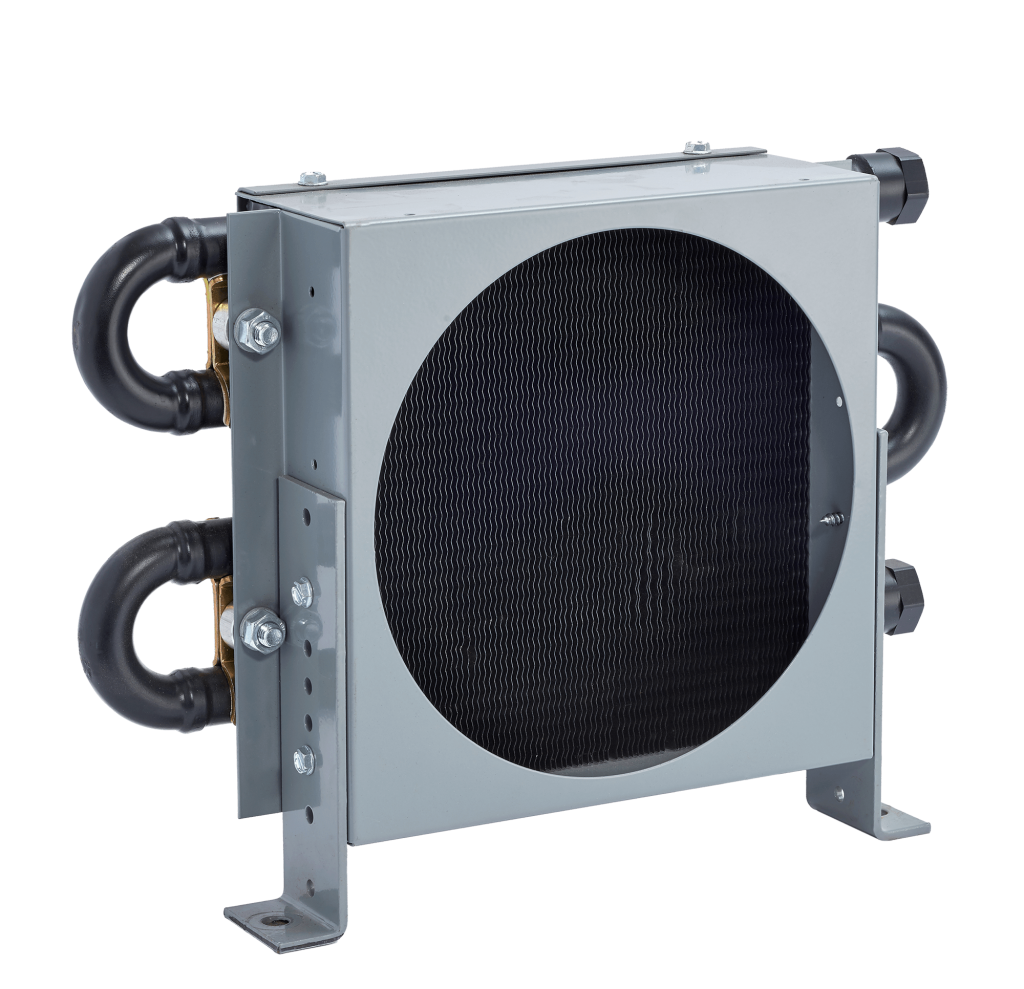

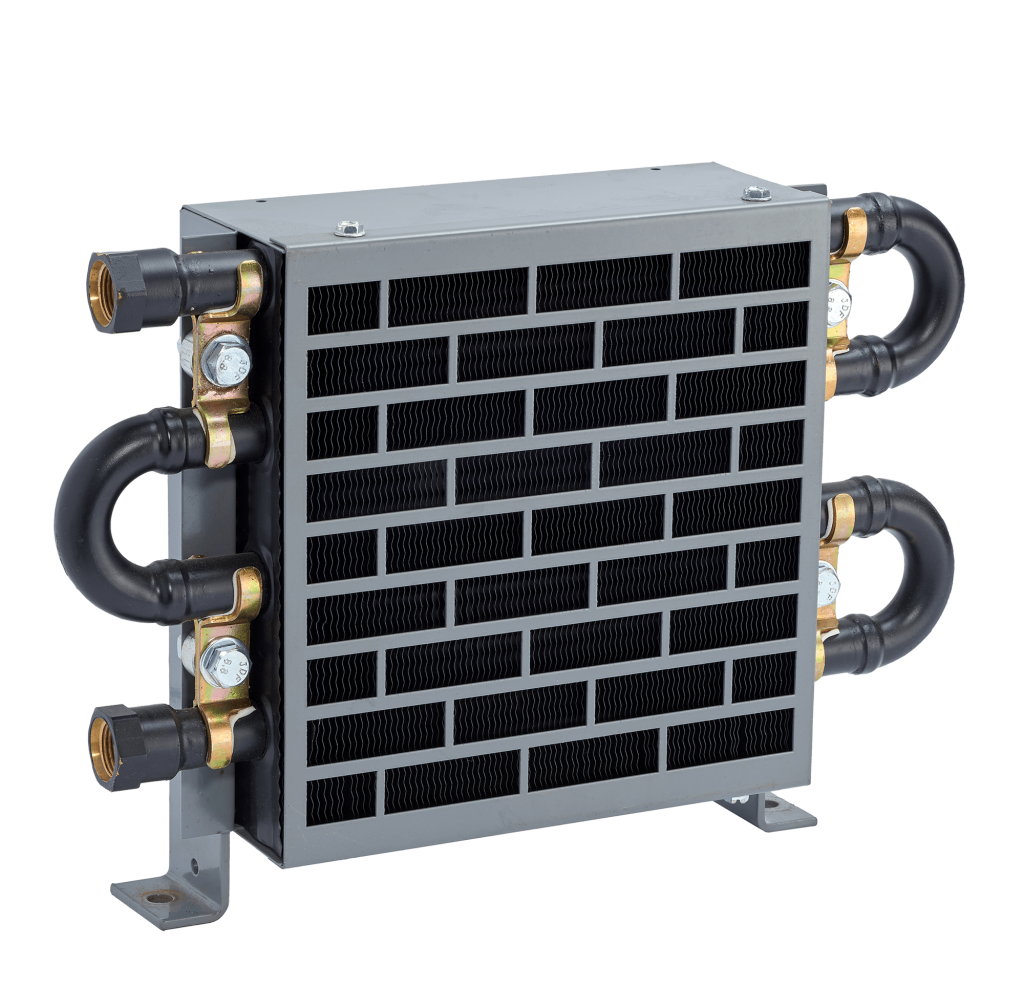

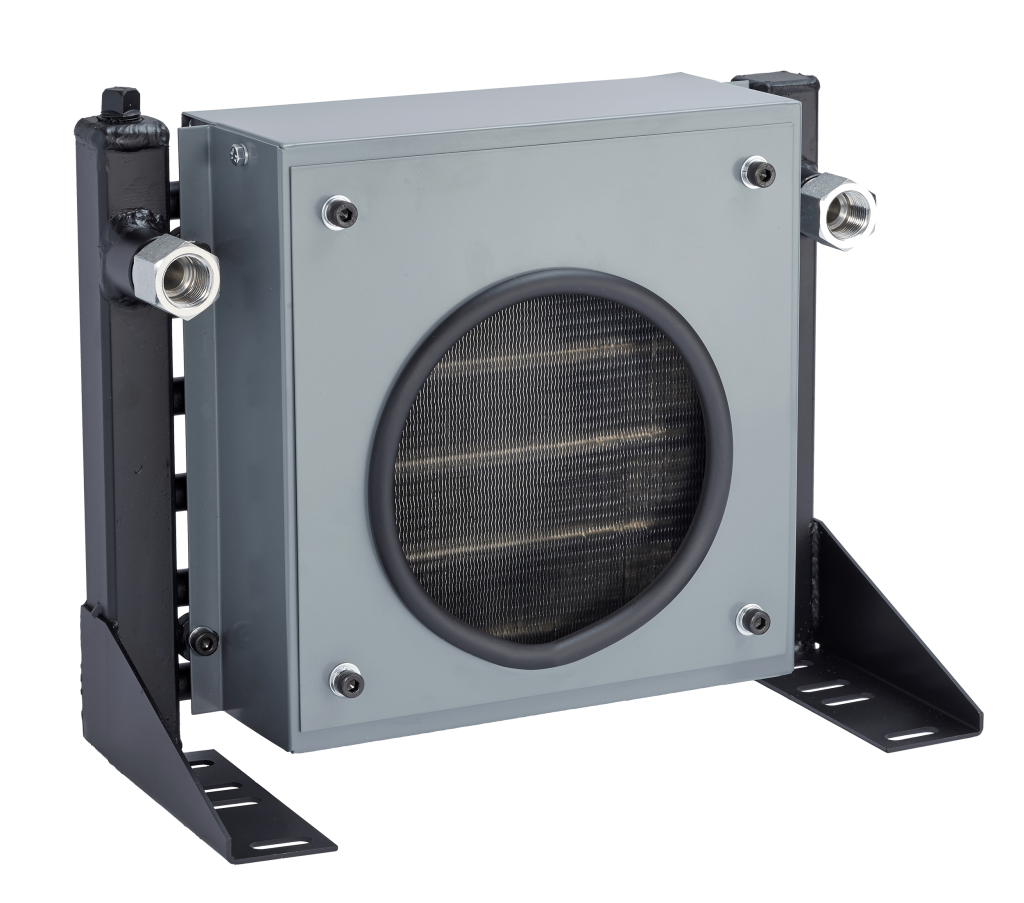

The compact Industrial RM Series is an efficient, low cost, low flow design that mounts behind an existing TEFC motor. It provides optimal performance for case drain cooling applications. This compact design includes multiple pass options as standard and an adjustable mounting plate that allows the cooler to mate with the electric fan (RM-19 & 22).
Consult catalog for additional sizes and technical information.
Product Features
- Mounts behind existing TEFC motor for compact, low cost application
- Utilizes electric motor fan air flow
- Ideal for case drain and low flow applications
- Protected core
- Compact, efficient design
- Low flow & heat removal
- SAE, NPT or metric conversion
- Mounting brackets included
- Maximum Operating Pressure 300 PSI
- Maximum Operating Temperature 350°F
- Tubes – Copper
- Fins – Aluminum
- Turbulators – Aluminum
- Cabinet – Steel with powder coat finish
- Filter – Stainless frame with washable media
- Manifolds – Copper (RM-08), Steel (RM-19 & RM-24)
- Connections – Brass (RM-08), Steel (RM-19 & RM-24)
- Nameplate – Aluminum
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available

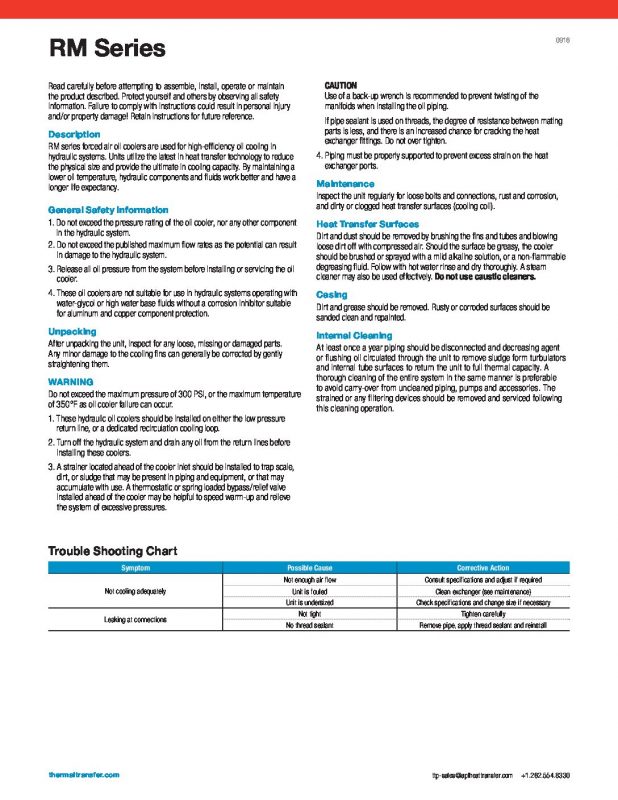

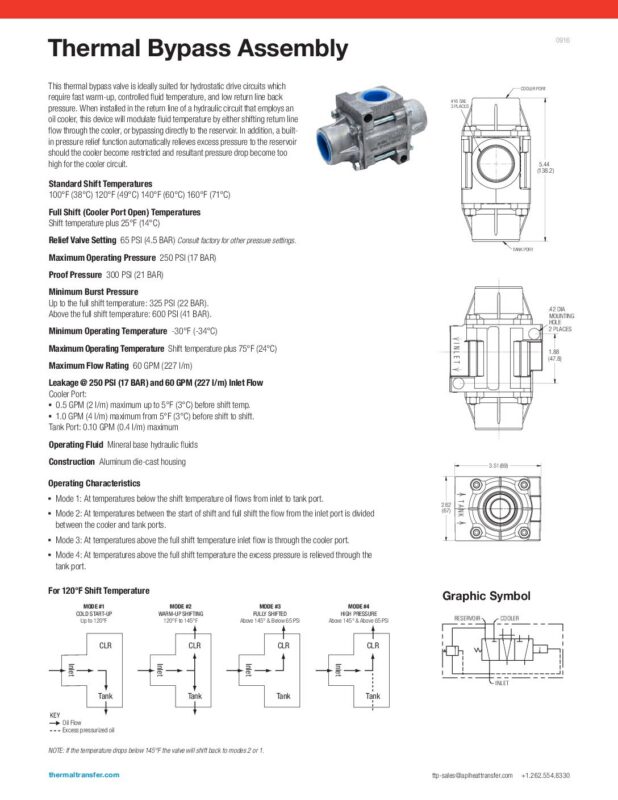

Documents
Configure the RM Series
3D Configurator
Our 3D Product Configurator will allow you to build up the cooler with specific options that are required for your application, view what you have created in 3D, then download the model directly into your format to complete your modeling project.
