HCR Series
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling, Compressed Air Cooling
Application
Industrial Applications
Technology
Shell & Tube, Steel
Removable-Bundle Shell & Tube Oil Cooler — Serviceable, Bundle Replaceable In Place

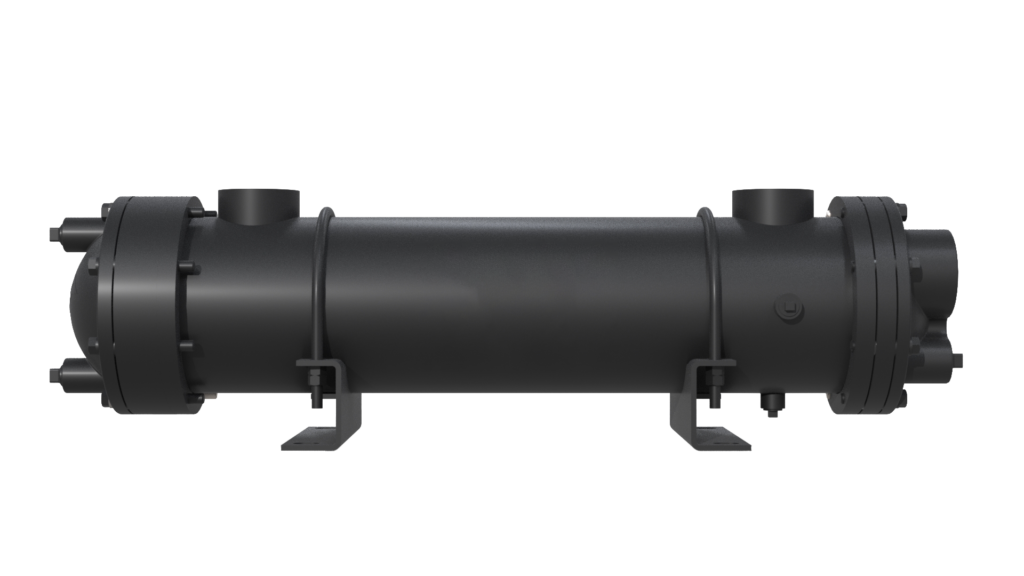

The Thermal Transfer Products HCR Series is a bare-bundle, water-cooled shell and tube heat exchanger with a removable tube bundle designed for easy service. Its defining feature: the tube bundle can be pulled out for cleaning or exchange while the shell stays mounted in place and the shell connections remain undisturbed — so you don’t have to unbolt piping or remove the entire cooler to service it.
That serviceability translates directly into lower cost of ownership. When a bundle fouls or wears, you replace only the tube-bundle portion rather than buying and installing a complete cooler, which cuts downtime and labor and delivers a quicker payback. It also makes the HCR well suited to fouling-prone or dirty-water service where periodic cleaning is a fact of life.
The HCR is ideal for hydraulic oil cooling and compressed air cooling, with a maximum shell-side operating pressure of 300 PSI. It’s the serviceable, removable-bundle counterpart to TTP’s fixed-tubesheet HC Series — the same proven water-to-oil cooling, with a bundle you can pull. TTP’s XSelector® sizing program — available online and as a mobile app — helps select the right model for your flow, heat load, and cooling-water conditions.
Consult catalog for additional sizes and technical information.
Product Features
- Interchangeable with TTP HC Series
- Rugged steel construction
- Low cost
- End bonnets removable for servicing
- Mounting feet included (may be rotated in 90° increments)
| Ratings | |
|---|---|
| Maximum Operating Pressure | Shell Side 300 PSI Tube Side 150 PSI |
| Maximum Operating Temperature | 300°F |
| Heat Rejection | From 6–70 HP (4.5–360 kW) |
| Oil Flow | From 5–210 GPM (11–460 LPM) |
| Materials | |
|---|---|
| Tubes | Copper |
| Tubesheet | Carbon Steel |
| Shell | Carbon Steel |
| Baffles | Carbon Steel |
| End Bonnets | Cast Iron |
| Mounting Brackets | Carbon Steel |
| Gaskets | Nitrile Rubber/Cellulose Fiber |
| Nameplate | Aluminum Foil |
| Configuration | |
|---|---|
| Mounting feet included (may be rotated in 90° increments) |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
