MAGHEX 2 Fan Controller for Hydraulic and Engine Cooling Systems
Product Type
Accessory
Solution
Hydraulic Oil Cooling
Programmable Fan Controller & Temperature Sensor for DC Cooling Fans

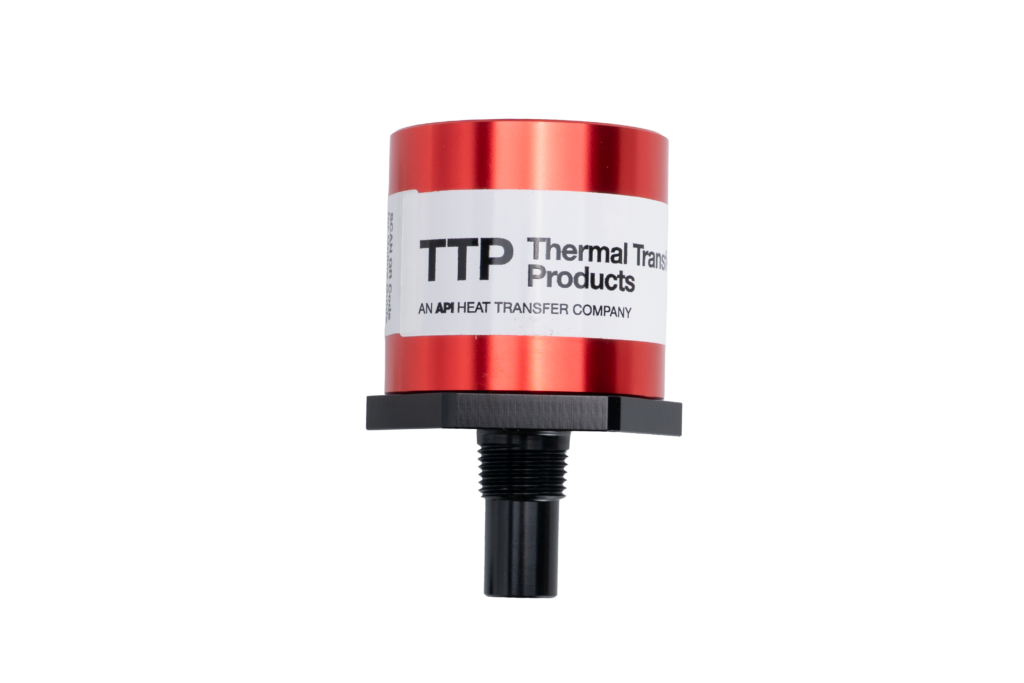

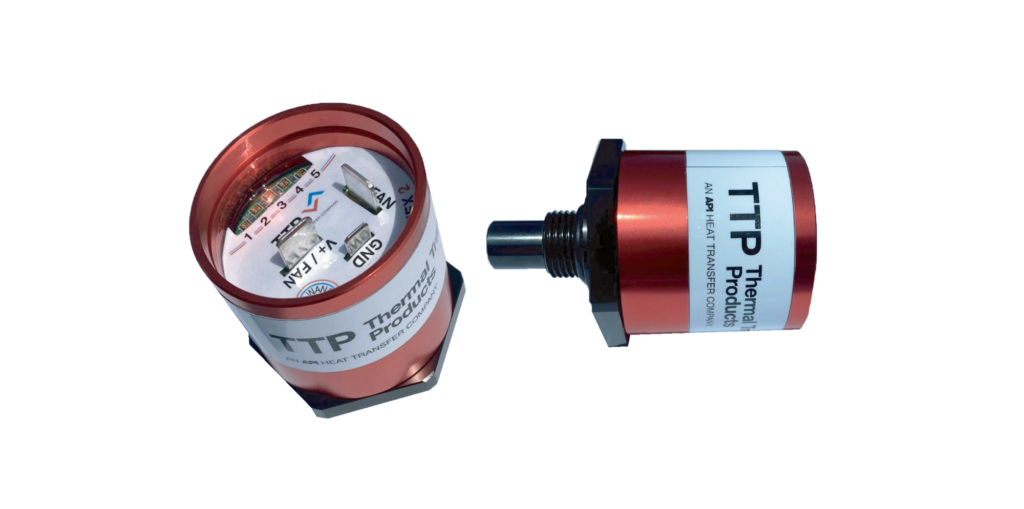

The Thermal Transfer Products MAGHEX 2 is a compact, programmable fan controller and temperature sensor in a single aluminum housing — a smart, temperature-based controller for oil and coolant fan systems in mobile and industrial applications. It mounts directly to the heat exchanger and provides accurate temperature control by cycling the electric cooling fan to maintain the desired oil temperature.
Combining the sensor and controller in one housing reduces wiring and mechanical installation, and it integrates easily into the MA Series through any SAE #8 or 3/8″ – 1/2″ NPT ports. It creates a simple fan drive circuit with minimal programming, making it a low-cost alternative to complex control systems. The built-in temperature sensor activates the fan based on the current set point, and onboard LEDs indicate oil temperature status — below, at, or 20°F above the set point.
The MAGHEX 2 operates on 12 or 24 volt DC and controls loads up to 60 amps, with ten selectable temperature set points from 100° to 200°F (38° to 93°C). Setup and programming are done with the MAGHEX 2 magnetic wand, which is not required for normal operation. Consult the catalog for additional technical information.

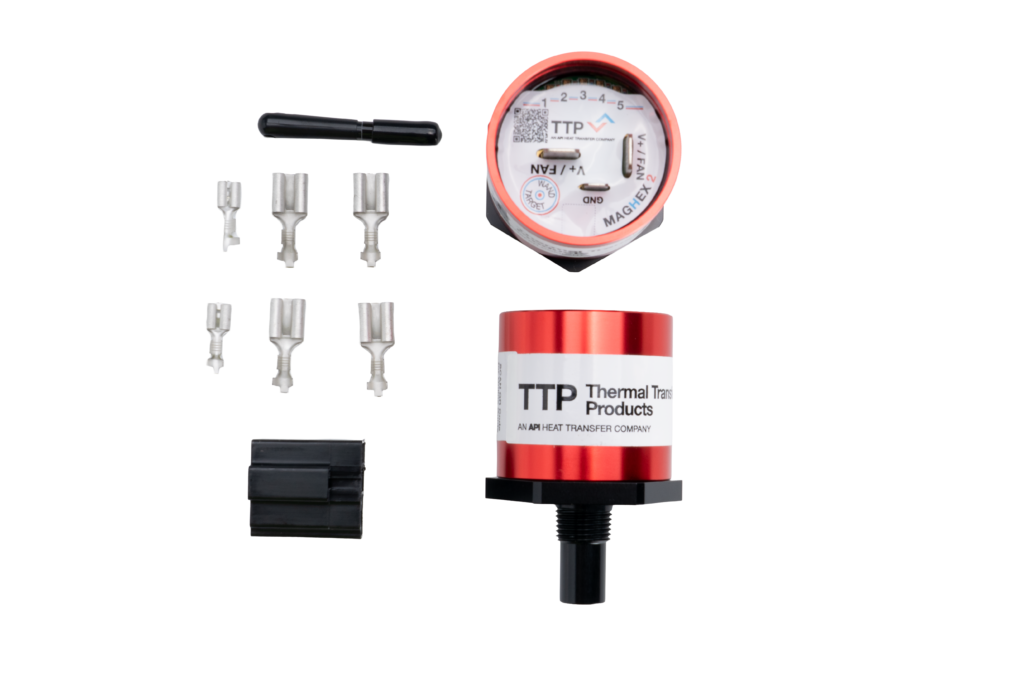

MAGHEX Programming Wand
Consult catalog for additional sizes and technical information.
Product Features
-

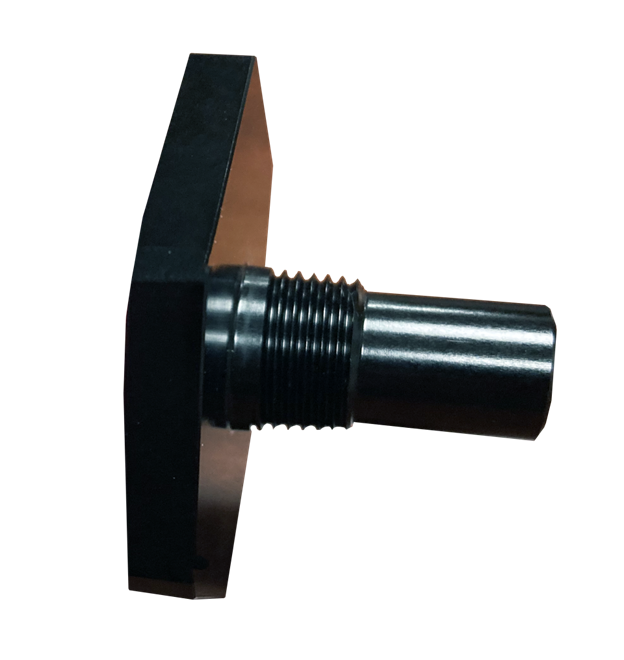

Easy installation and integration into any SAE-8 (59649) or 3/8″ NPT (600181) port or cavity.
- Creates a simple drive circuit with minimal programming.
- Low cost alternative to complex control systems.
- Utilize built-in temperature sensor to activate the fan based upon current set point.
- Oil temperature status shown as below, at, or 20°F above set point.
- 12 or 24 volt DC operation controlling up to 60 amps.
- Temperature sensor and operation controller in single aluminum housing.
- Select from 10 temperature settings from 100° to 200°F (38° to 93°C).
- Solid-state design, fully sealed microprocessor.
- Manual override feature built-in.
- Shuts off 7 degrees below set point.
- Improved circuitry to accommodate higher amperage applications.
- Housing is used as a heat sink for internal components.
- Automatic low voltage shut down.
| Ratings | |
|---|---|
| Operating Voltage | 12 or 24 VDC Systems |
| Min/Max Voltage | 9 VDC / 32 VDC |
| Current Rating | 60 AMPS |
| Switch Type | Normally open |
| Ambient Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Measurement Temperature Range | 100°F to 200°F (38°C to 93°C) |
| Current Draw MAGHEX | 20 mA |
| Setpoint Selections | 10 set points in 10 degree increments from 100°F to 200°F (38° to 93°C) |
| Selection Method | Magnetic programming wand |
| Enclosure Rating | IP69K |
| Sealed Housing | High-grade Automotive Potting Compound |
| Housing Material | Anodized Aluminum |
| Weight | Approx 8 oz. (.23 kg) incl. wire |
| Fan Connector | 3 Conductor Receptacle |
| Product Options | |
|---|---|
| SAE -8 (M) (PN 59649) and 3/8″ NPT (M) (PN 600181) thread connection. | |
| Remote Sensing available, contact factory. |
The MAGHEX 2 controller connects directly with electric fan systems used in hydraulic and engine-cooling applications. It ensures reliable, intelligent temperature-based fan control in compact cooling packages.
