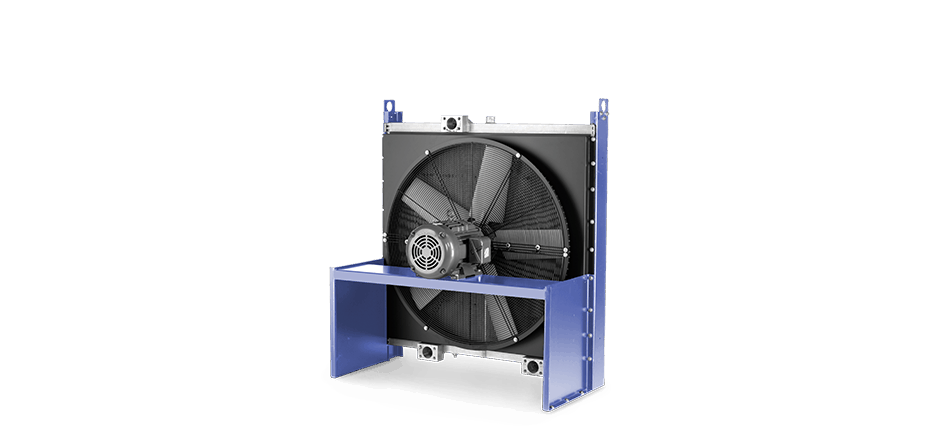

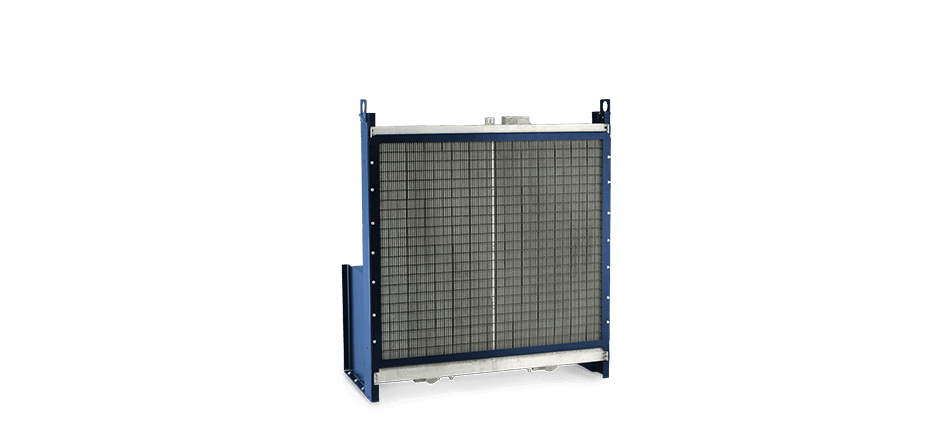

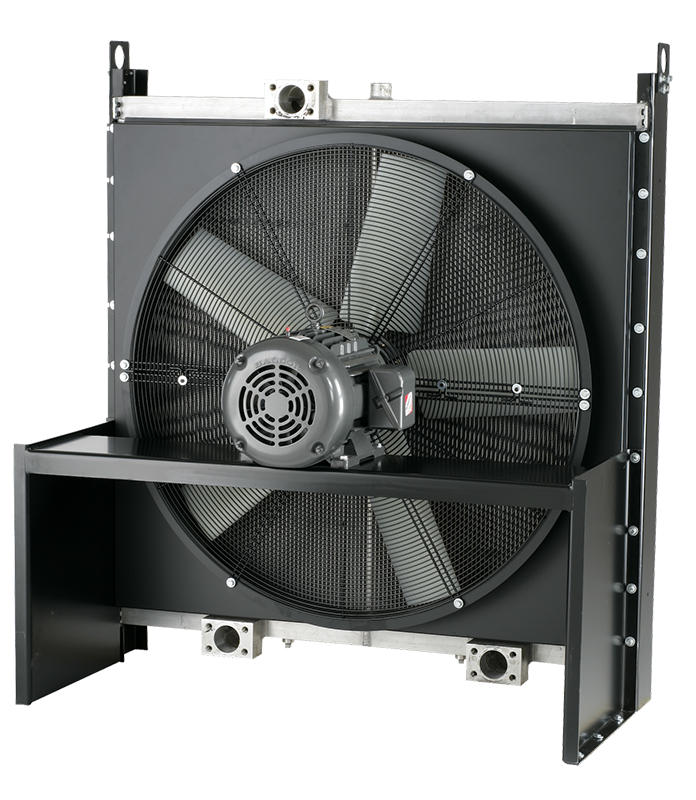

OCA Series
Air-Cooled Hydraulic Oil Coolers – Brazed Aluminum for mobile and Industrial Systems.
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling
Application
Industrial Applications
Technology
Air Cooled, Brazed Aluminum
Industrial Air Cooled T-Bar Extruded Tube Brazed Aluminum
The OCA Series is our high-performance series for high heat rejection, rough environment, and high viscosity fluids. OCA units are available in a wide range of sizes designed for a broad range of both mobile and industrial applications. Its rugged steel construction features the patented T-BAR™ solid extrusion core technology but is more efficient and lighter in weight than competitor models. This high performing series has the ability to handle high viscosity fluids with the advantage of providing ample cooling in areas where water is costly or unavailable.
Designed for integration into hydraulic power units and mobile machinery cooling circuits where air-cooling is preferred or water is unavailable.
Consult catalog for additional sizes and technical information.
Product Features
- Young Radiator – OCS interchange (approximate)
- American Industrial – AOCS interchange (approximate)
- High efficiency, light weight, low fouling extruded core design
- Rugged construction with a patented T-BAR brazed aluminum core captured in steel framing
- High flow capacity
- Ability to handle high viscosity fluids
- Enclosed fan cooled standard – TEFC
- Both mobile and industrial applications
- Gearbox
- Rock Crushers
- Mining
- Maximum Operating Pressure 250 PSI
- Maximum Operating Temperature 350°F
- Heat rejection up to 700 HP (522 kW)
- Flow range from 20-500 GPM (48 to 1100 LPM)
- Fan Blade – Composite with cast aluminum hub
- Cabinet – Steel with baked enamel finish
- Connections – Aluminum
- Motor Support – Steel
- Shroud – Steel
- Core – Brazed Aluminum
- Motor – TEFC & Hydraulic motor
- External pressure bypass
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector®Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Built for high-heat, high-viscosity applications requiring reliable, efficient cooling in demanding environments.
- Efficient heat transfer.
- Durable construction for demanding hydraulic and water-to-water cooling.
