AHP/AHPH Series
Product Type
Heat Exchanger
Solution
Compressed Air Cooling
Application
Industrial Applications
Technology
Air Cooled, Brazed Aluminum
The AHP/AHPH Series aftercooler is specifically designed for cooling compressed air. The rugged, heavy duty design features high performance bar & plate aluminum construction that is optimized for high air flow, low pressure drop, and maximum heat transfer. To support system design, the AHP/AHPH Series is also backed by downloadable CAD models, technical documentation, and application engineering support to simplify OEM integration.

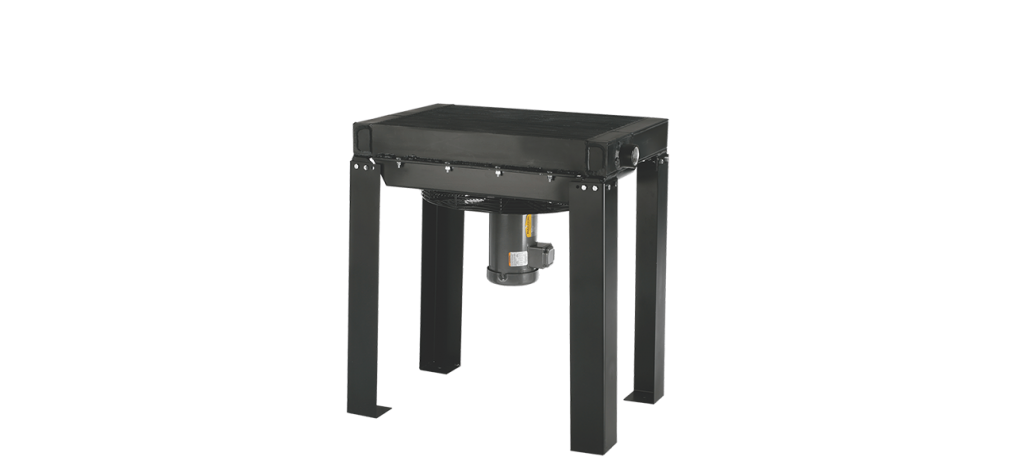

AHP Series features durable black powder coating finish and detachable legs for floor or suspension mounting. Air flow is vertical so hot air can be blown away from any operators. This compact series includes 9 models with flow capacity from 125 – 4800 SCFM (3.5 – 135.9 SCMM) to be used on compressors from 60 – 700 HP (45 – 520 Kw).

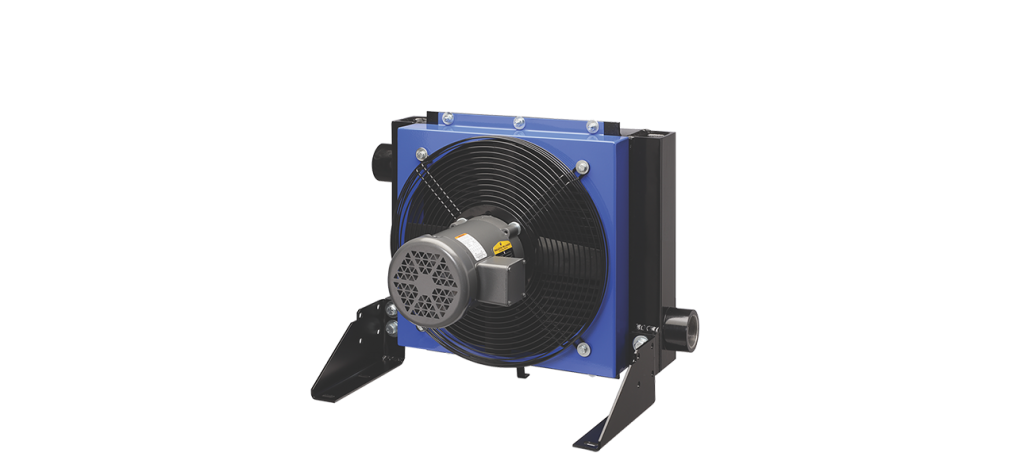

AHPH Series features durable black powder coating finish and are designed for horizontal air flows. Fixed mounting feet. This compact series includes 6 models with flow capacity from 30 –2800 SCFM (1 – 80 SCMM) to be used on compressors from 60 – 400 HP (45 – 520 Kw).
UPA and AA are obsolete.
For the crossover information, please refer to page 3 in the AHP/AHPH series brochure.
Consult catalog for additional sizes and technical information.
Product Features
- Full line of sizes and features
- Brazed bar and plate aluminum core
- Energy efficient
- High performance
- High flows 50-3500 CFM
- Vertical (AHP) or horizontal (AHPH) air flow
- High technology compact design
- Rugged heavy duty construction
- Excellent for heat recovery
- Detachable legs on AHP (shipped unattached). Fixed mounting Feet on some AHPH models
- CRN Available
- Maximum Operating Pressure 250 PSI
- Maximum Operating Temperature 350°F
- *CRN Rating 235 PSI at 250°F (121°C)
- Cabinet – Steel with baked enamel finish
- Core – Brazed aluminum bar and plate
- Fan – Aluminum hub, polypropylene blades
- Shroud – Painted steel
- Motor – TEFC
- Fan Guard – Steel with baked enamel finish
- Air Motor
- All catalog product is available with short lead-times, ensuring fast delivery and dependable supply
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
- Replacement parts and maintenance support keep your systems running with minimal downtime
- Procurement advantage: designed to meet global standards while reducing overall total cost of ownership
Can I download CAD models and technical documentation to help integrate Thermal Transfer Products’ coolers into my system?
Yes. Thermal Transfer Products provides CAD models in multiple formats and full technical documentation, including datasheets and service manuals, are available through our configurator and resources hub.
Why choose Thermal Transfer Products for lead time, quality, and cost?
Thermal Transfer Products are known for our superior quality with shortest lead times in the industry, all making for a good value for heat exchanger packages.
How quickly can Thermal Transfer Products deliver heat exchangers?
TTP offers short lead times across our catalog products. With CAD configurator tools and expert engineering support, OEM engineers can move from design to delivery quickly, without compromising on performance or quality.
Documents
Brochures
AHP/AHPH Series
Brochures

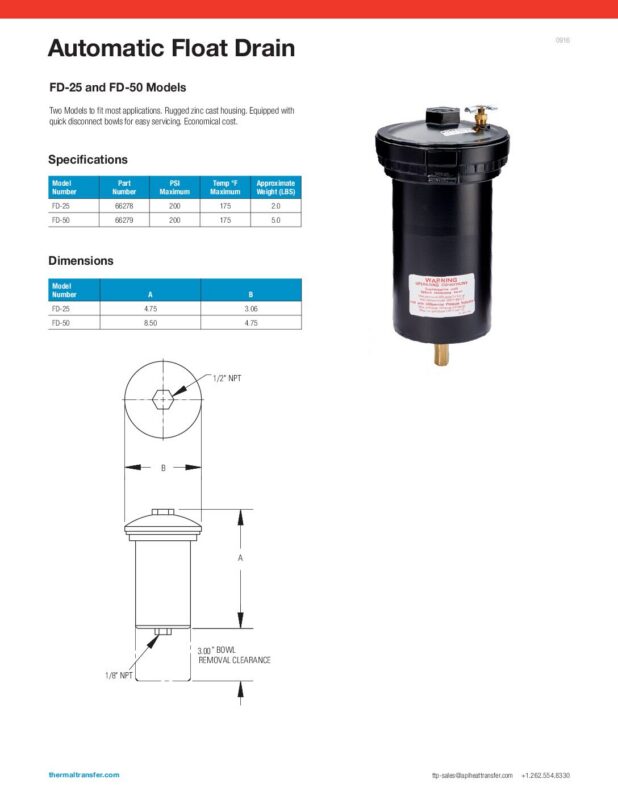

AHP/AHPH Accessories
Technical

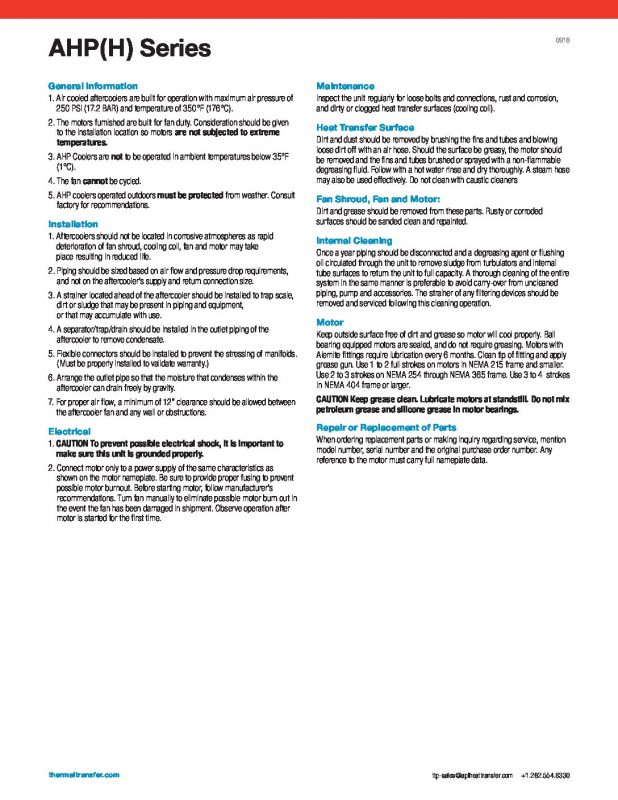

AHP/AHPH Technical Information
Service Parts

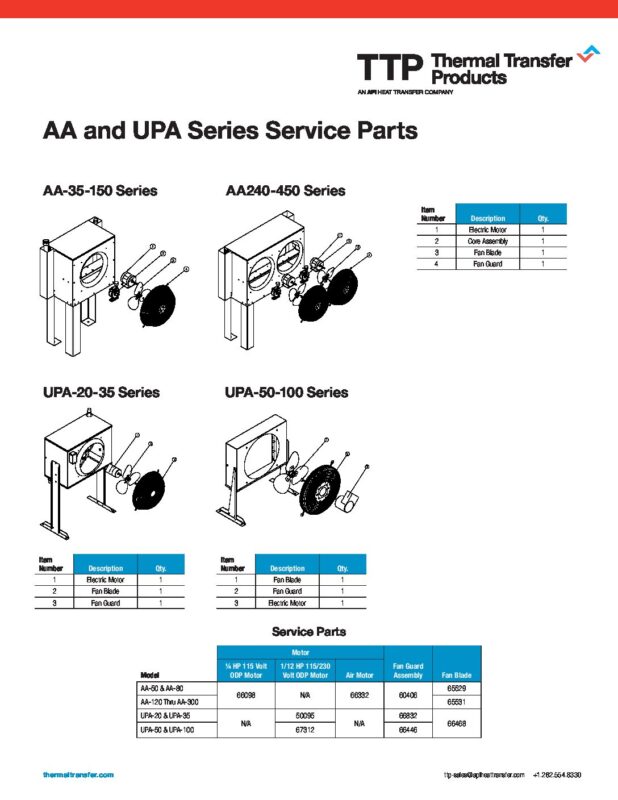

AA/UPA Series Service Parts
Service Parts

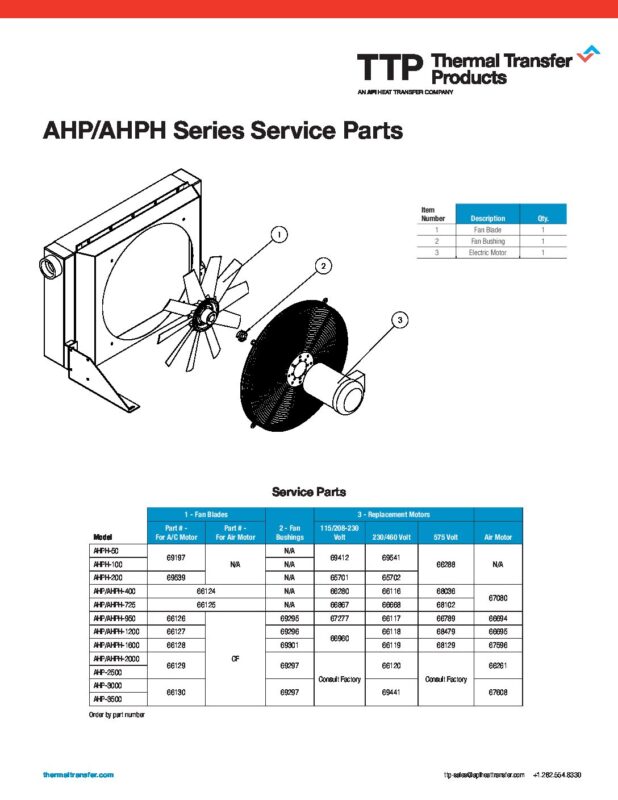

AHP/AHPH Series Service Parts
