Size this product for your application.
Our XSelector® program allows you to size products to help achieve optimum performance for your application. Use the online portal or try one of our mobile apps.
Type
Hydraulic Oil Cooling
Cooling Medium
Air
Application
Industrial
Technology
Air Cooled / Copper Tube / Aluminum Fin

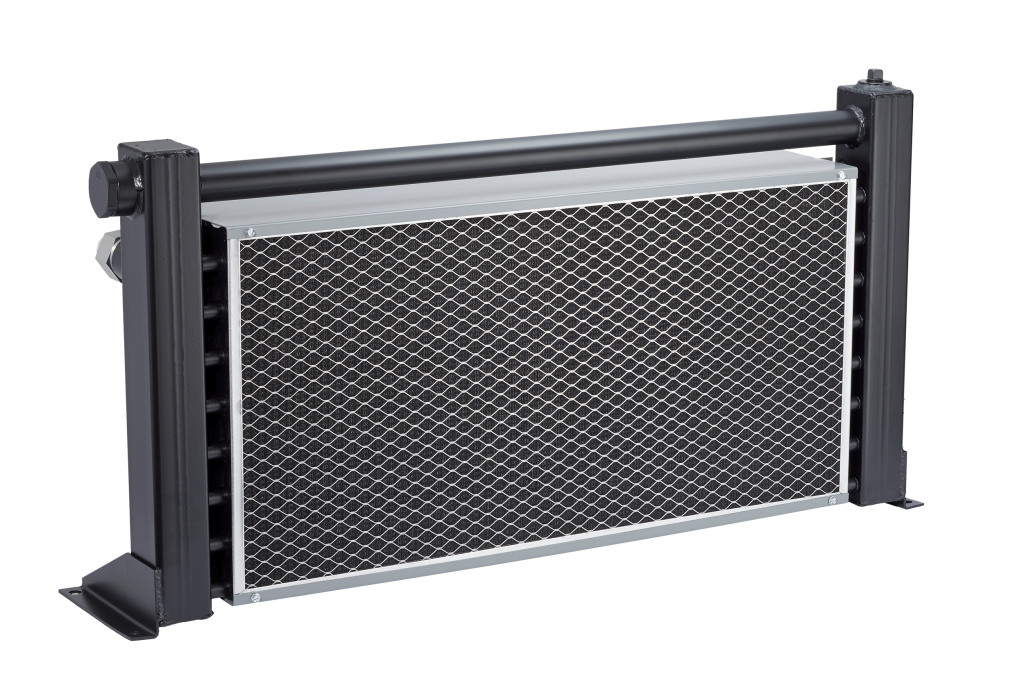

Industrial Air Cooled Copper Tube/Aluminum Fins

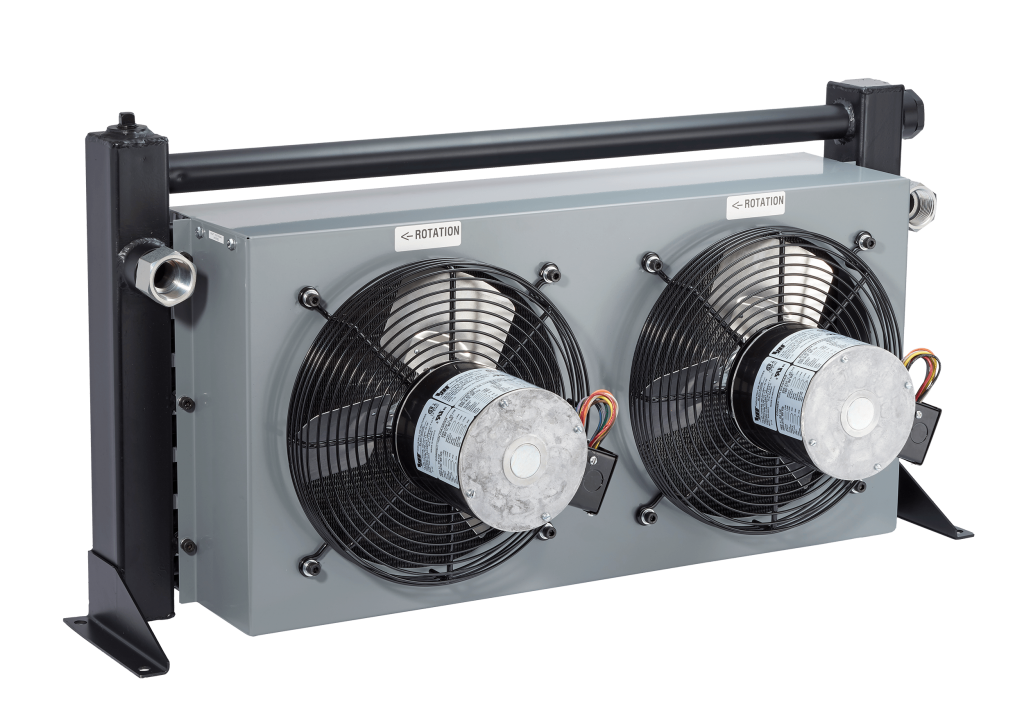

The Industrial AOC Series is a low cost cooler for basic hydraulic power unit applications. It features an AC fan drive, and is available with or without an internal bypass. The dual rated (50/60 Hz) electric motor allows for application flexibility around the globe. Removable air filters prevent air-side core blockage (clogging of fins with debris) and aggressive turbulators allow for optimal heat rejection at lower flow rates.
To support system design, the AOC Series is also backed by downloadable CAD models, technical documentation, and application engineering support to simplify OEM integration.
Consult catalog for additional sizes and technical information.
Configure your AOC Series – Industrial
- Low cost
- Quiet operation
- AC motors
- Single or three-phase 60/50 HZ motors
- Core filter standard (except AOC-08)
- 3/4″ tubes
- Mounting brackets
- SAE connections
- Built-in serviceable internal pressure bypass (exception – AOC-08 valve not serviceable)
- NPT or BSPP oil connections
- All catalog product is available with short lead-times, ensuring fast delivery and dependable supply
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App. Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available

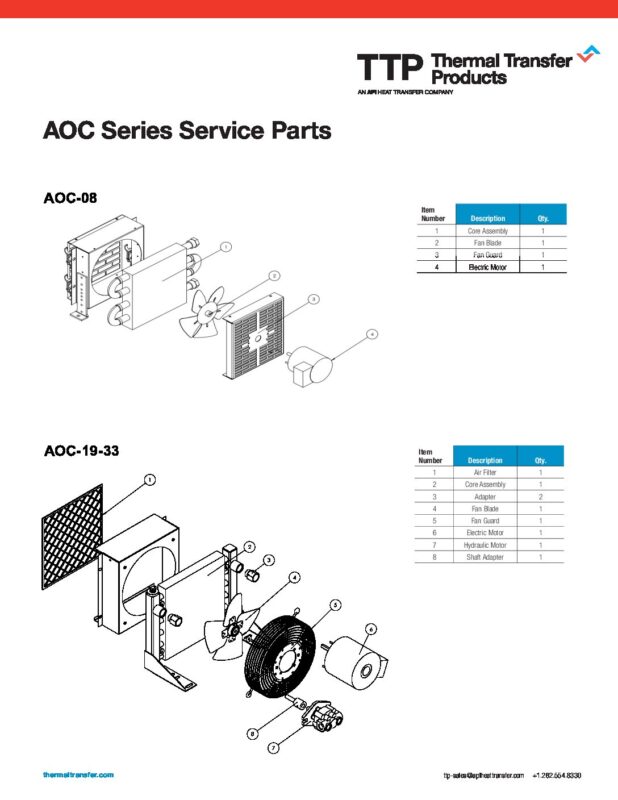

- Replacement parts and maintenance support keep your systems running with minimal downtime
- Procurement advantage: designed to meet global standards while reducing overall total cost of ownership
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
- Maximum Operating Pressure 300 PSI
- Maximum Operating Temperature 350°F
- Oil flows to 150 GPM (330 LPM)
- Heat Rejection up to 85 HP (64 kW)
- Tubes – Copper
- Fins – Aluminum
- Turbulators – Aluminum
- Fan Blade – Aluminum with steel hub
- Fan Guard – Steel with powder coat
- Filter – Stainless frame with washable media
- Cabinet – Steel with powder coat finish
Can I download CAD models and technical documentation to help integrate Thermal Transfer Products’ coolers into my system?

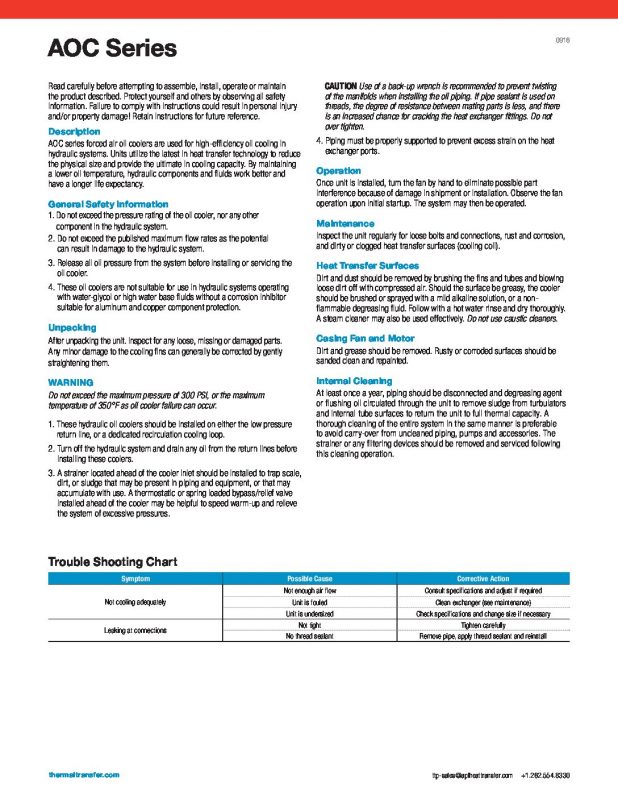

Yes. Thermal Transfer Products provides CAD models in multiple formats and full technical documentation, including datasheets and service manuals, are available through our configurator and resources hub.
Why choose Thermal Transfer Products for lead time, quality, and cost?
Thermal Transfer Products are known for our superior quality with shortest lead times in the industry, all making for a good value for heat exchanger packages.
How quickly can Thermal Transfer Products deliver heat exchangers?
TTP offers short lead times across our catalog products. With CAD configurator tools and expert engineering support, OEM engineers can move from design to delivery quickly, without compromising on performance or quality.
