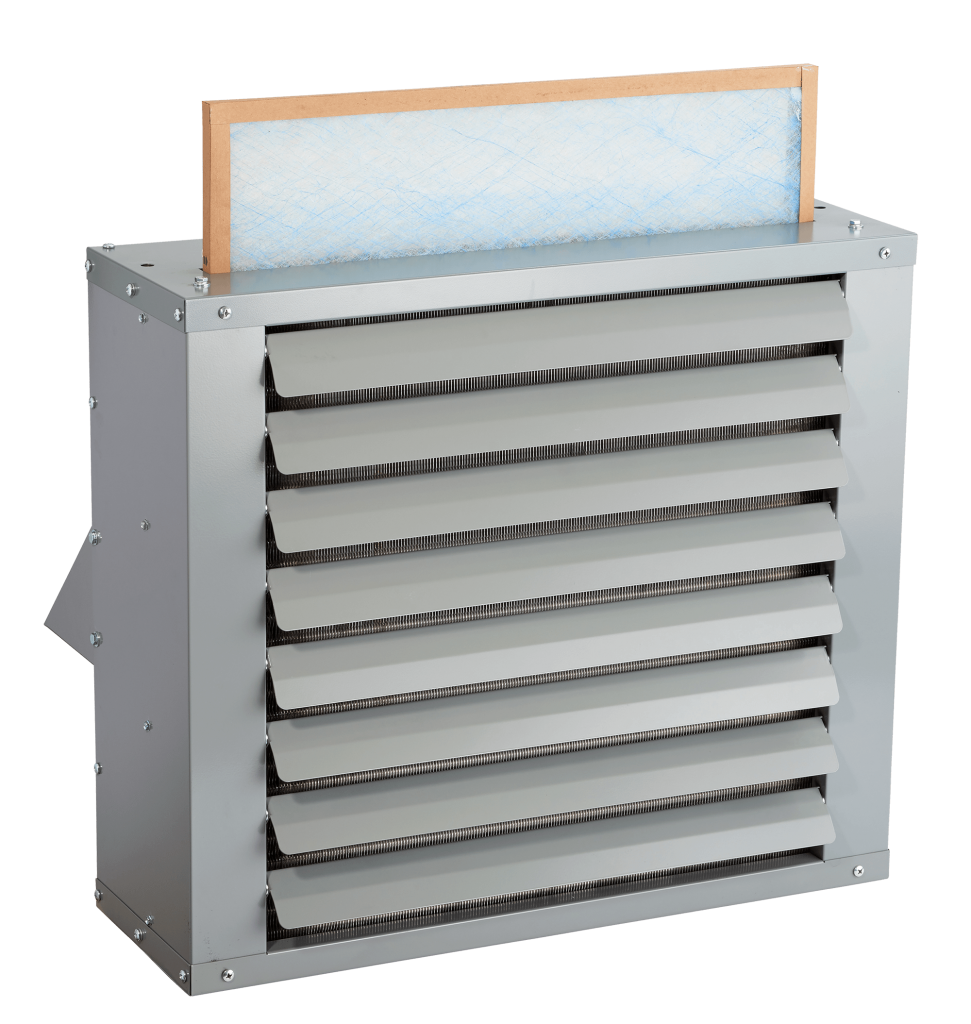

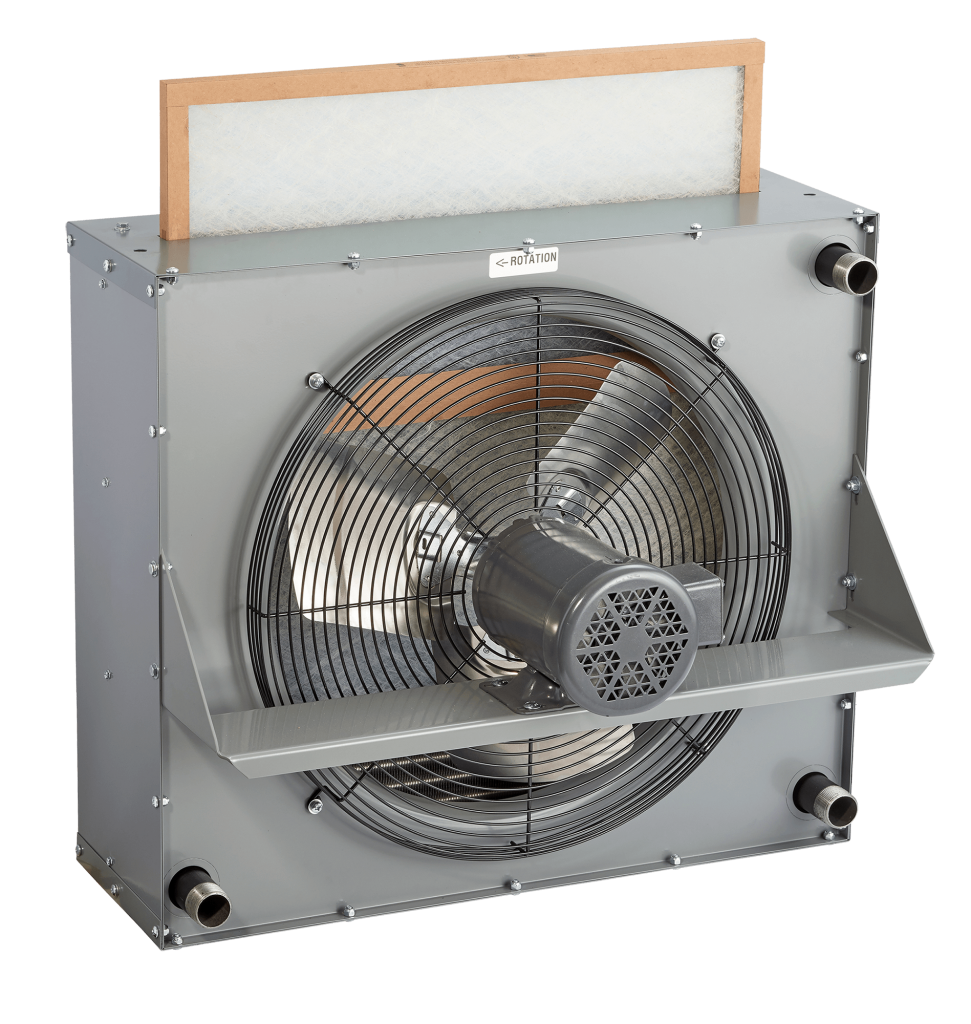

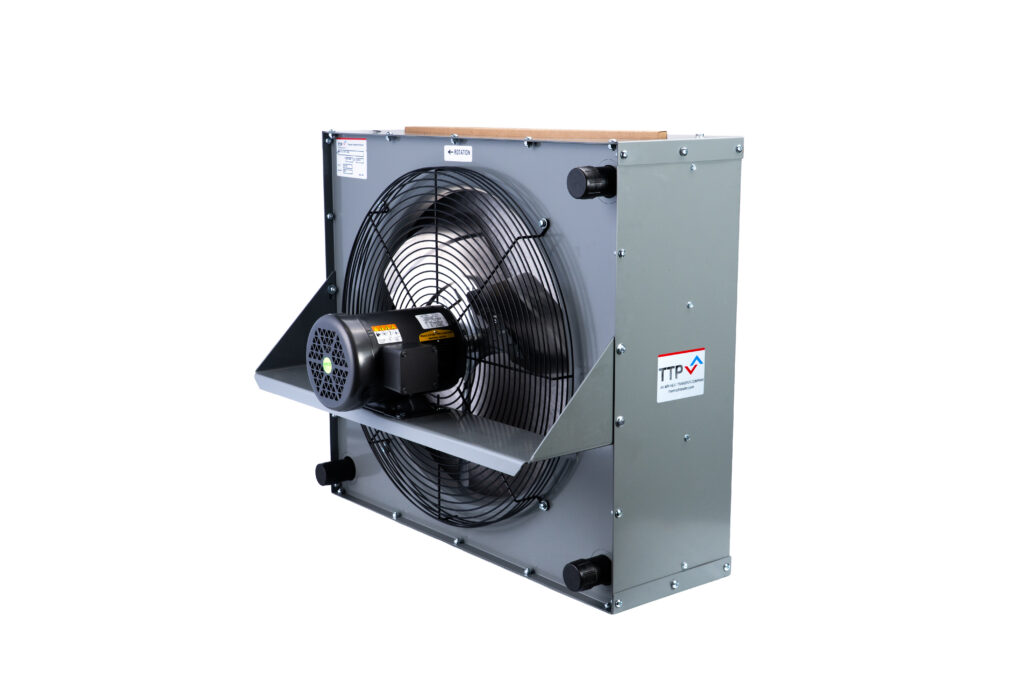

Air-Cooled Hydraulic Oil Cooler with Replaceable Air Filter
The Thermal Transfer Products Industrial AOF Series is an air-cooled hydraulic oil cooler built with a copper-tube, aluminum-fin core and an AC fan drive, distinguished by a replaceable air-side filter that protects the heat exchanger in adverse environments. In dusty, dirty, or debris-heavy settings, the filter keeps the fins from clogging and preserves cooling performance — making the AOF the filtered version of TTP’s AO Series for the same medium-flow, moderate-heat-removal duty.
Like the AO Series, it cools hydraulic oil (and fluids such as glycols) with ambient air, and offers a versatile one- or two-pass configuration to tune heat transfer and pressure drop. Adjustable cabinet louvers let you regulate the direction of heated exhaust air, and an optional internal pressure bypass protects the core during cold starts and pressure spikes.
The AOF is well suited to hydraulic power units and industrial machinery operating in foundries, mills, quarries, woodworking, agriculture, and other dirty environments where an unfiltered cooler would foul quickly. Available in single- and three-phase motor configurations, it’s backed by downloadable 3D CAD models, technical documentation, and application engineering support. TTP’s XSelector® sizing program — available online and as a mobile app — helps optimize model selection for performance and value.
Consult catalog for additional sizes and technical information.
Product Features
- Available fiberglass disposable or aluminum washable filters
- Interchange for Young OCH
- Adjustable louvers (manual)
- Medium flow rates
- Moderate heat removal
- One or two pass option
| Ratings | |
|---|---|
| Maximum Operating Pressure | 300 PSI |
| Maximum Operating Temperature | 400°F |
| Heat Rejection | From 1–30 HP (1.3–22 KW) |
| Oil Flow | From 2–100 GPM (4–220 LPM) |
| Materials | |
|---|---|
| Tubes | Copper |
| Fins | Aluminum |
| Turbulators | Steel |
| Fan Blade | Aluminum with steel hub |
| Fan Guard | Zinc plated steel |
| Cabinet | Steel with powder coat finish |
| Manifolds | Steel |
| Connections | Steel |
| Product Options | |
|---|---|
| Connection options | SAE & metric |
| Number of passes | 1 or 2 |
| Internal pressure bypass | |
| Foot brackets | |
| Corrosive resistant marine coating | |
| Available fiberglass disposable or aluminum washable filters | |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures
AOF Series
Brochures

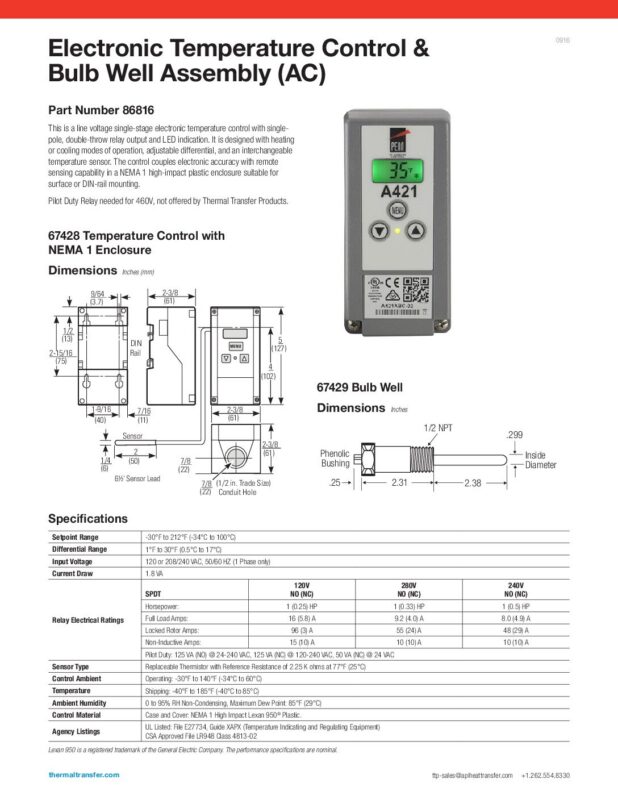

AOF Accessories
Technical

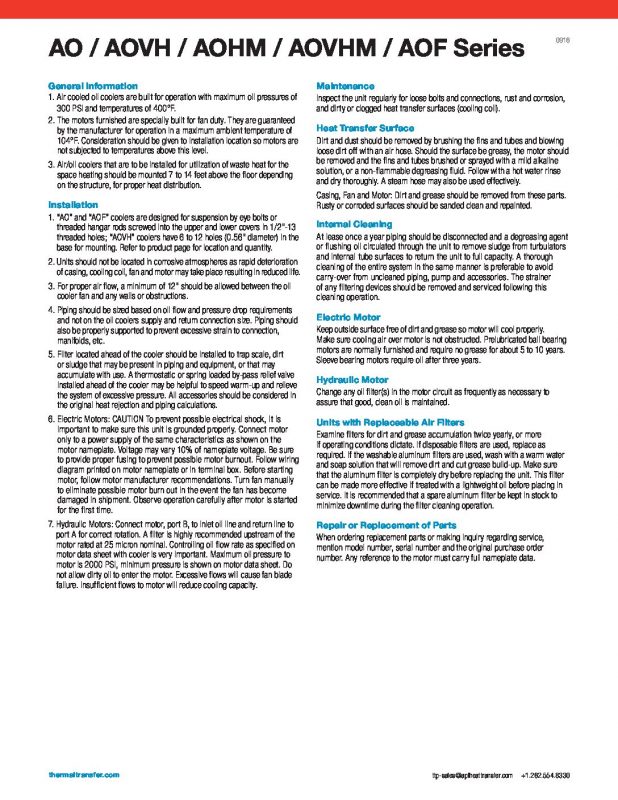

AOF Technical Information
Service Parts

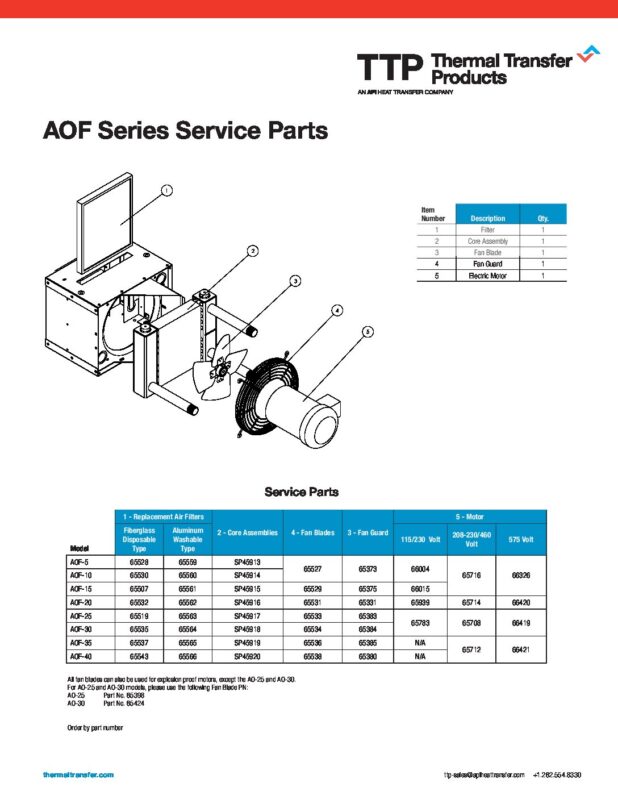

AOF Series Service Parts
