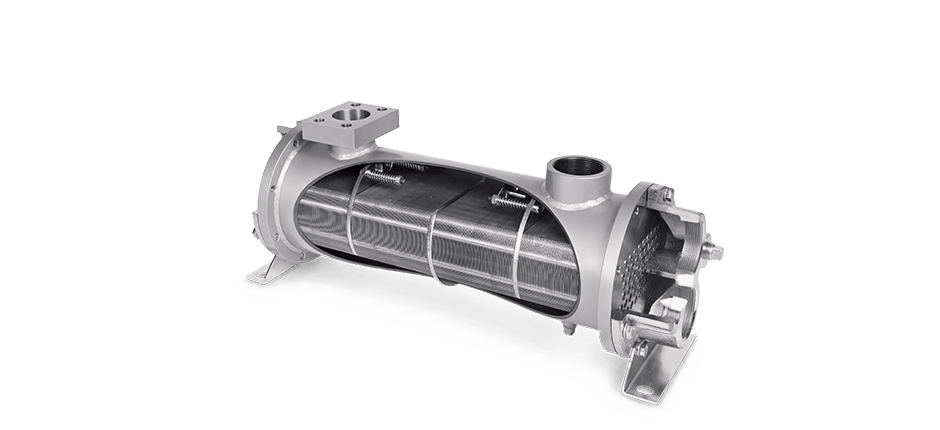

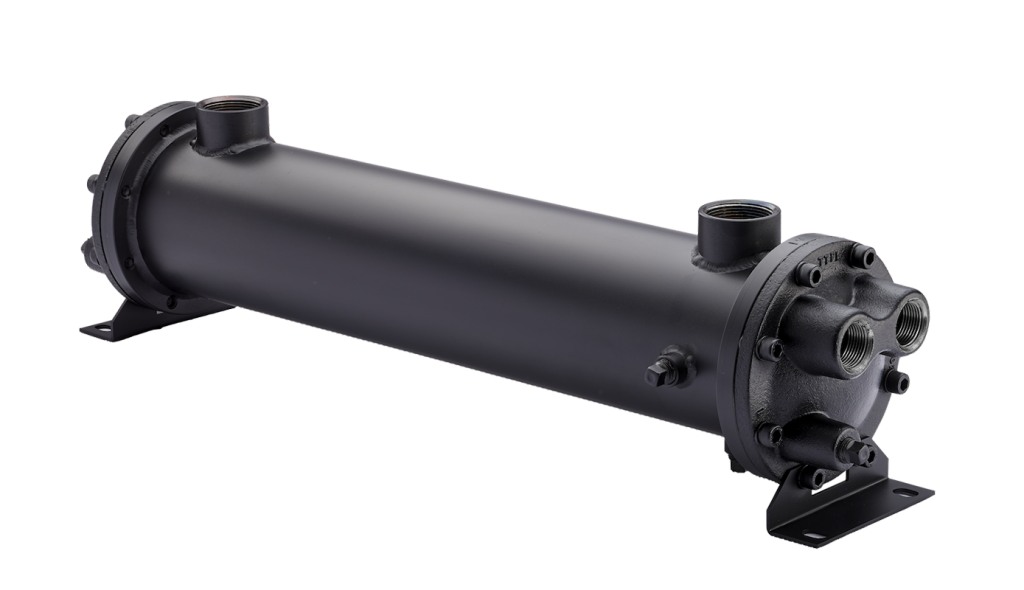

High-Capacity Finned-Tube Shell & Tube Oil Cooler — Water-Saving “Green Cooler”

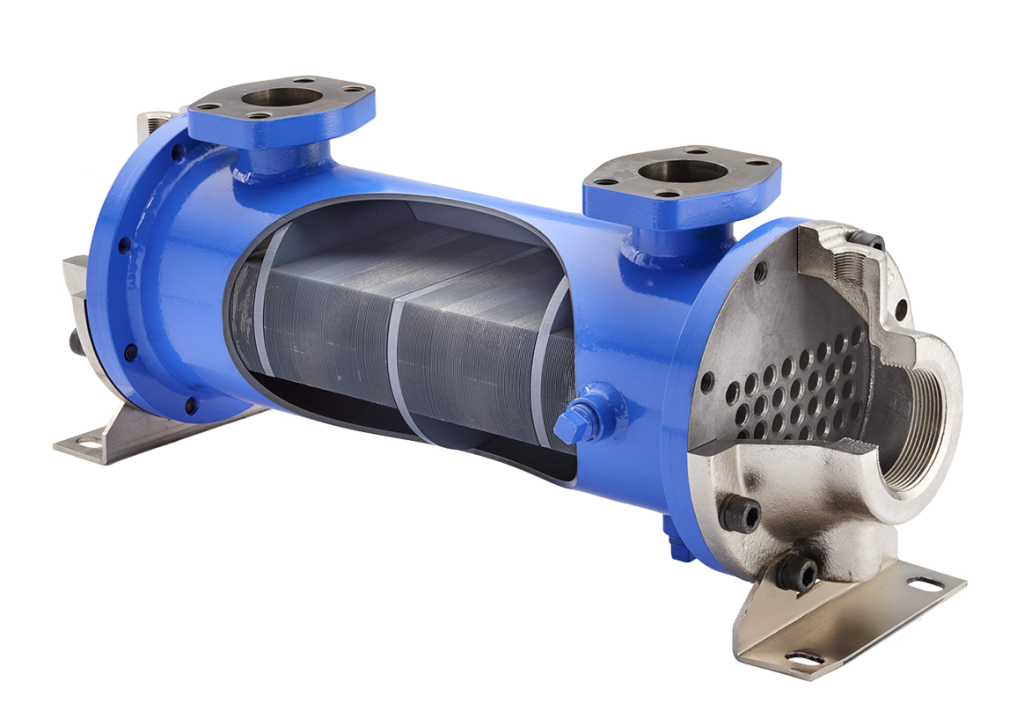

The Thermal Transfer Products EC Series — the “Green Cooler” — is a high-capacity, water-cooled finned-tube shell and tube heat exchanger for hydraulic oil cooling. It’s the larger, higher-performance version of the EK Series, sharing the same finned-tube bundle core design but scaled up to handle flows up to 250 GPM for demanding, high-flow applications.
Its defining advantage is water efficiency: the aluminum finned-tube bundle adds substantial surface area, so the EC achieves high heat rejection while consuming far less cooling water than a conventional bare-tube shell and tube exchanger. That makes it an environmentally responsible, cost-saving choice wherever cooling water is metered, limited, or expensive — the reason it’s branded the Green Cooler.
An optional Surge-Cushion® bypass protects the core during cold starts and flow surges, and multiple material options let the EC serve a wide variety of applications, including sea water service. Maximum operating pressure is 300 PSI on the shell side. TTP’s XSelector® sizing program — available online and as a mobile app — helps select the right model for your oil flow, heat load, and cooling-water conditions.
Consult catalog for additional sizes and technical information.
Product Features
- Rugged steel shell construction
- 3/8″ tube size
- 5” to 8.5″ shell diameters
- High flow capacity & performance
- High efficiency finned bundle design
- End bonnets removable for easy tube cleaning
- Mounting brackets included (may be rotated in 90° increments)
| Ratings | |
|---|---|
| Maximum Operating Pressure | Shell Side 300 PSI Tube Side 150 PSI |
| Maximum Operating Temperature | 300°F |
| Heat Rejection | Up to 600 HP (448 kW) |
| Flow Range | From 10–225 GPM (22–495 LPM) |
| Maximum Viscosity | 150 cSt |
| Materials | |
|---|---|
| Shell | Steel |
| Tubes | Copper / Copper Nickel / Stainless Steel |
| End Bonnets | Cast Iron / Bronze / Stainless Steel |
| Tubesheets | Steel / Copper Nickel / Stainless Steel |
| Baff les | Steel |
| Mounting Brackets | Steel |
| Gaskets | Nitrile Rubber/Cellulose Fiber |
| Fins | Aluminum |
| Nameplate | Aluminum Foil |
| Configuration | |
|---|---|
| Tube Size | 3/8" |
| Shell diameters | 5" to 8.5" |
| Mounting brackets included (may be rotated in 90° increments) | |
| Product Options | |
|---|---|
| Patented built-in in Surge-Cushion bypass | |
| Type 316 stainless steel, Bronze, or 90/10 copper-nickel components on Tube Side | |
| Multiple Connection Options | NPT x NPT SAE x NPT SAE Code 61 x NPT SAE Code 61 x BSPP |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures
EC Series
Brochures
Water Cooled HE Accessories
Technical
EC Technical Information
Service Parts
EC Series Service Parts
Frequently Asked Questions
It’s a high-capacity, water-cooled finned-tube shell and tube heat exchanger from Thermal Transfer Products, branded the “Green Cooler” for its low cooling-water usage. It cools hydraulic oil with water at high flow rates.
The aluminum finned-tube bundle provides extra surface area, so it rejects a lot of heat while using less cooling water than a conventional bare-tube exchanger — saving water and reducing operating cost.
They share the same finned-tube bundle design, but the EC is the larger, higher-performance version for higher-flow applications (up to 250 GPM), while the EK is the lower-cost, compact option for general-purpose hydraulic power units.
The larger EC sizes handle oil flows up to 250 GPM, with a maximum shell-side operating pressure of 300 PSI.
An optional built-in bypass that protects the cooler during cold starts and flow surges, when high-viscosity oil or sudden flow spikes would otherwise stress the core.
Yes — multiple material options are available, including sea water service configurations, letting the EC suit a wide range of applications.
