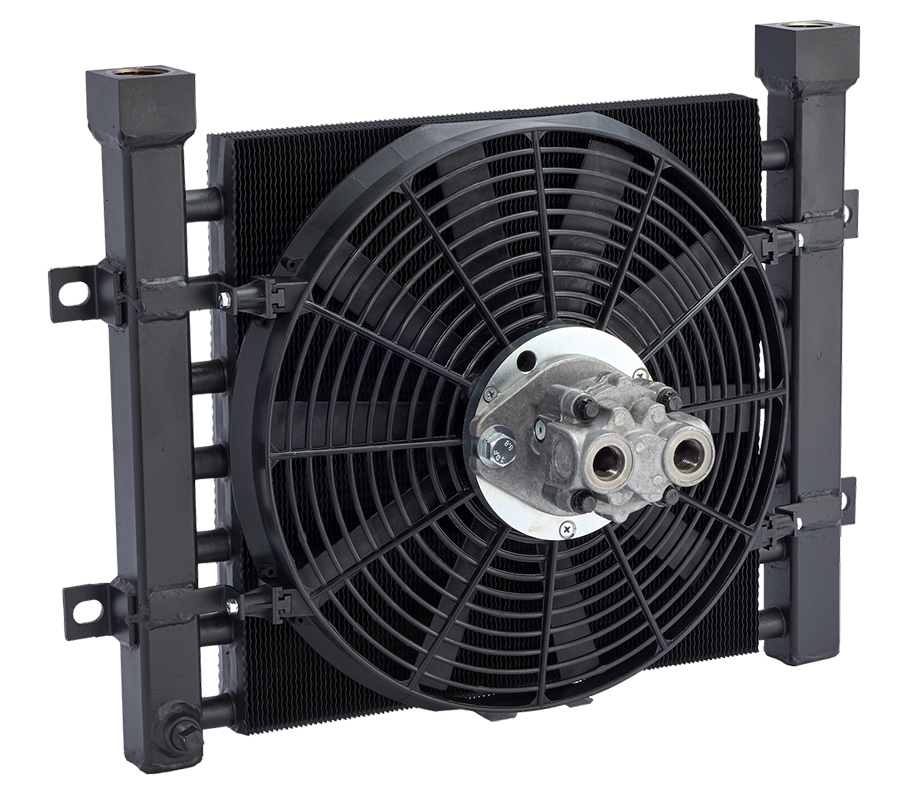

Rugged Mobile Air-Cooled Oil Cooler — Steel Tanks & Damage-Resistant Steel Fins
The Thermal Transfer Products Mobile DF Series is a rugged air-cooled hydraulic oil cooler engineered for very demanding mobile and off-highway applications. Its robust design features steel tanks and damage-resistant steel fins — rather than the more delicate aluminum fins used on lighter-duty coolers — so it withstands impact, flying debris, vibration, and rough handling in the field while delivering moderate flow rates and high heat removal.
The DF is driven by 12- or 24-volt DC fans or a long-life hydraulic fan motor, letting you match the drive to the power available on the machine. An optional serviceable internal pressure bypass provides cold-start protection and can be removed for service without disturbing the plumbing. It’s well suited to construction, agriculture, forestry, mining, and material-handling equipment that runs in dirty, high-vibration conditions.
The series has a maximum operating pressure of 300 PSI and a maximum operating temperature of 350°F. It shares its performance profile with the DH Series, but where the DH is a lighter radiator-face-mount and low-flow solution, the DF adds its own DC or hydraulic fan drive and heavier steel construction. TTP’s XSelector® sizing program — available online and as a mobile app — helps size the right model for your flow, heat load, and mounting.
Consult catalog for additional sizes and technical information.
Product Features
- Similar to DH with DC fan
- Heavy duty construction for rugged applications
- Steel manifolds
- Damage resistant steel fins
- 3/4″ tube size
- SAE or NPT oil connections
- Low amp draw 12 or 24 V DC motors
- Long life hydraulic motors
- Mounting brackets included
| Ratings | |
|---|---|
| Maximum Operating Pressure | 300 PSI |
| Maximum Operating Temperature | 350°F |
| Heat removal | Up to 35,000 BTU/HR |
| Oil flows | Up to 100 GPM |
| Hydraulic Motor Ratings | |
|---|---|
| Motor Displacement | .22in3/Rev. |
| Maximum Pressure | 2000 PSI |
| Allowable Backpressure | 1000 PSI |
| Materials | |
|---|---|
| Tubes | Copper |
| Fins | Steel |
| Turbulators | Steel |
| Manifolds | Steel |
| Fan Assembly | High Impact Plastic |
| Configuration | |
|---|---|
| 3/4″ tube size | |
| SAE or NPT oil connections | |
| Low amp draw 12 or 24 V DC motors |
| Product Options | |
|---|---|
| Fan control switch | |
| Serviceable internal pressure bypass |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App.
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status.
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures

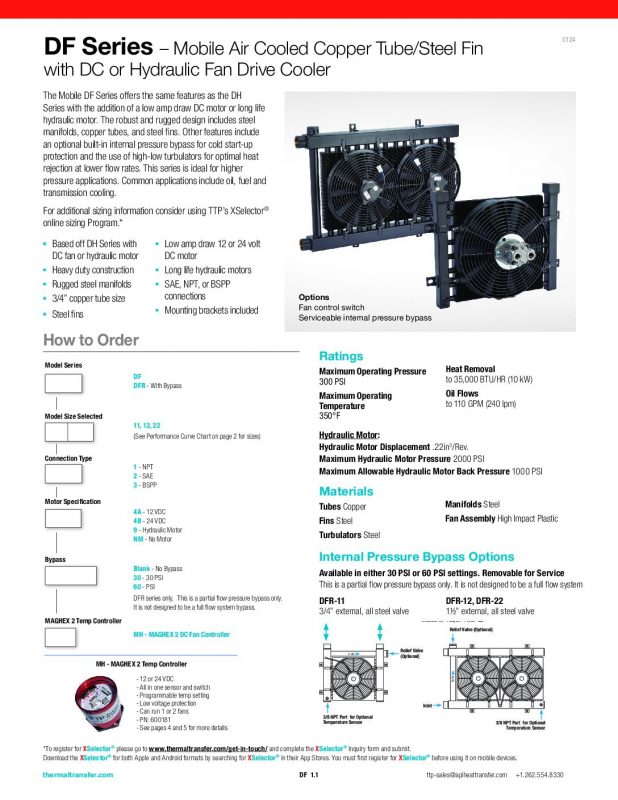

DF Series
