MA Series
Mobile Hydraulic Oil Coolers: Core Only or DC Fan Pack
Product Type
Heat Exchanger
Solution
Hydraulic Oil Cooling
Application
Mobile Applications
Technology
Air Cooled, Brazed Aluminum

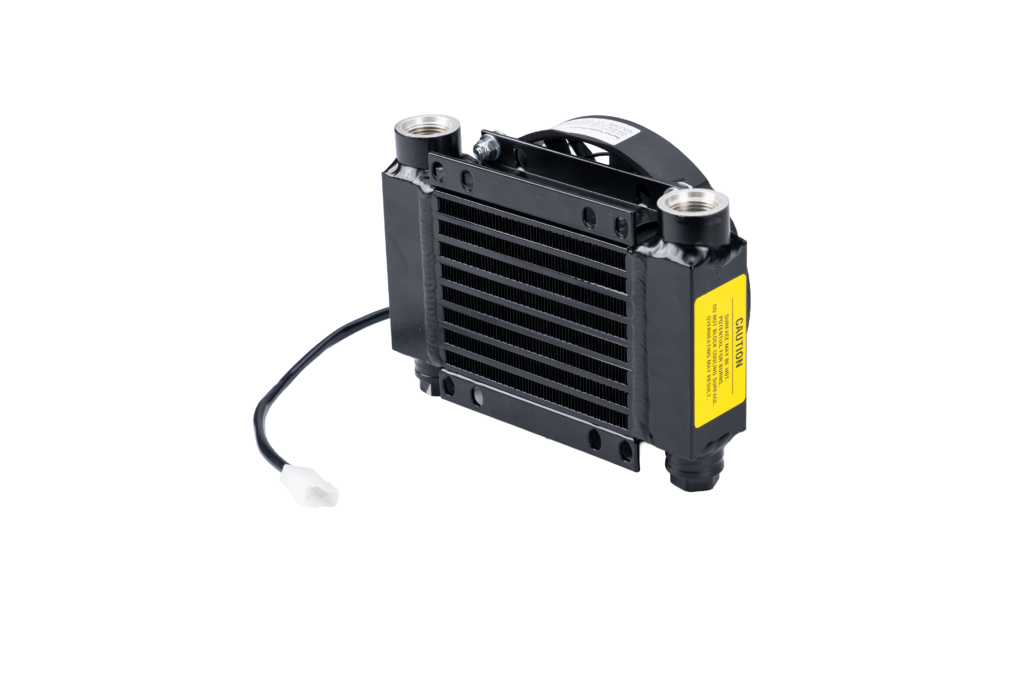

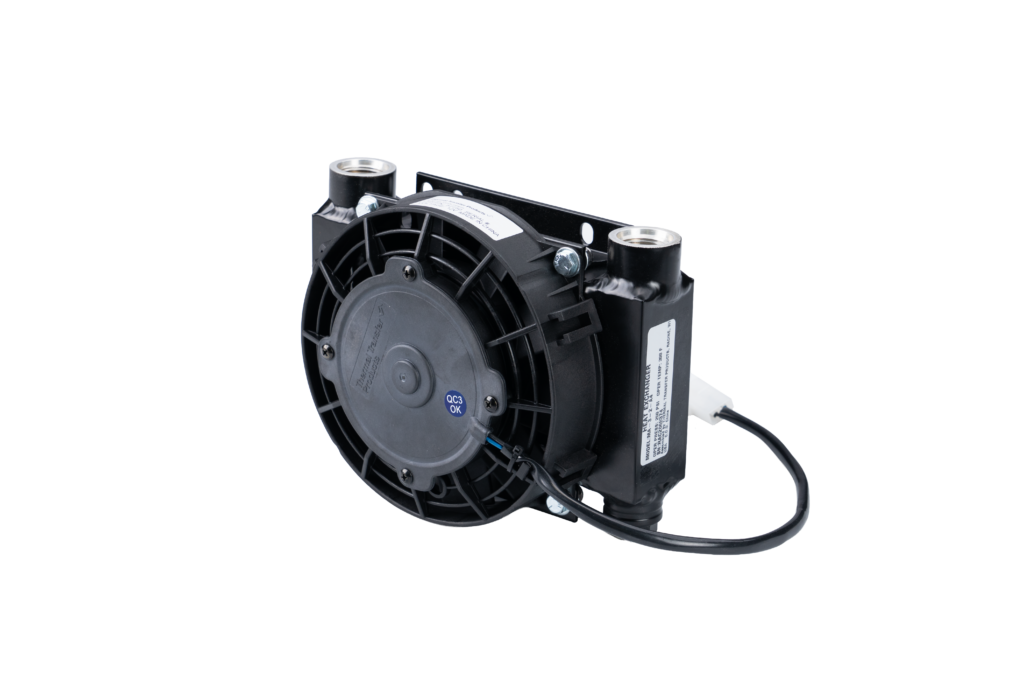

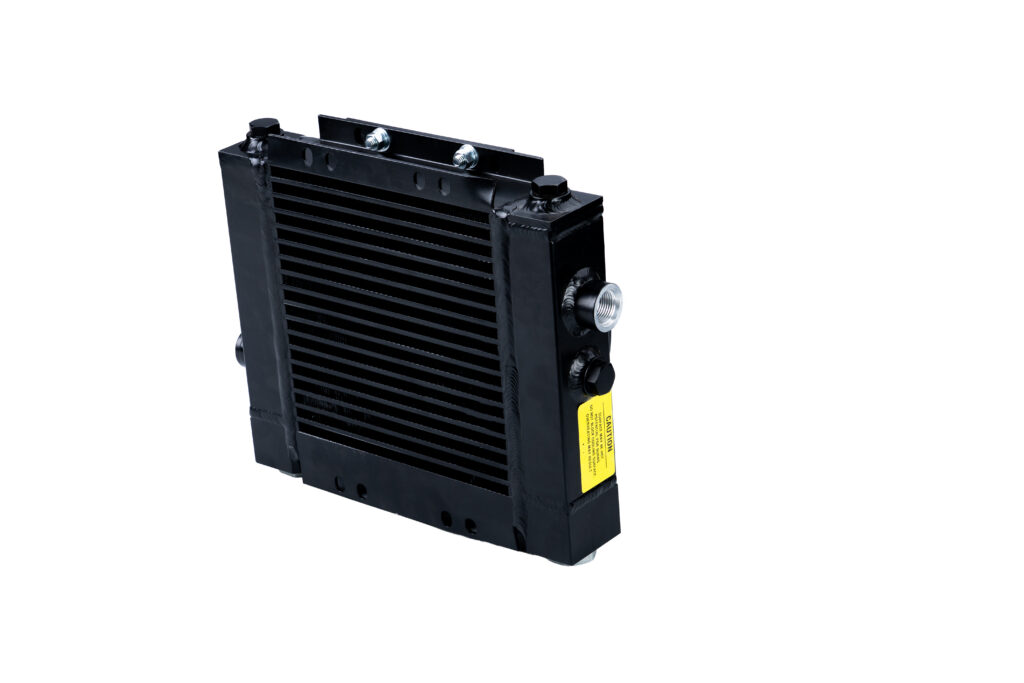

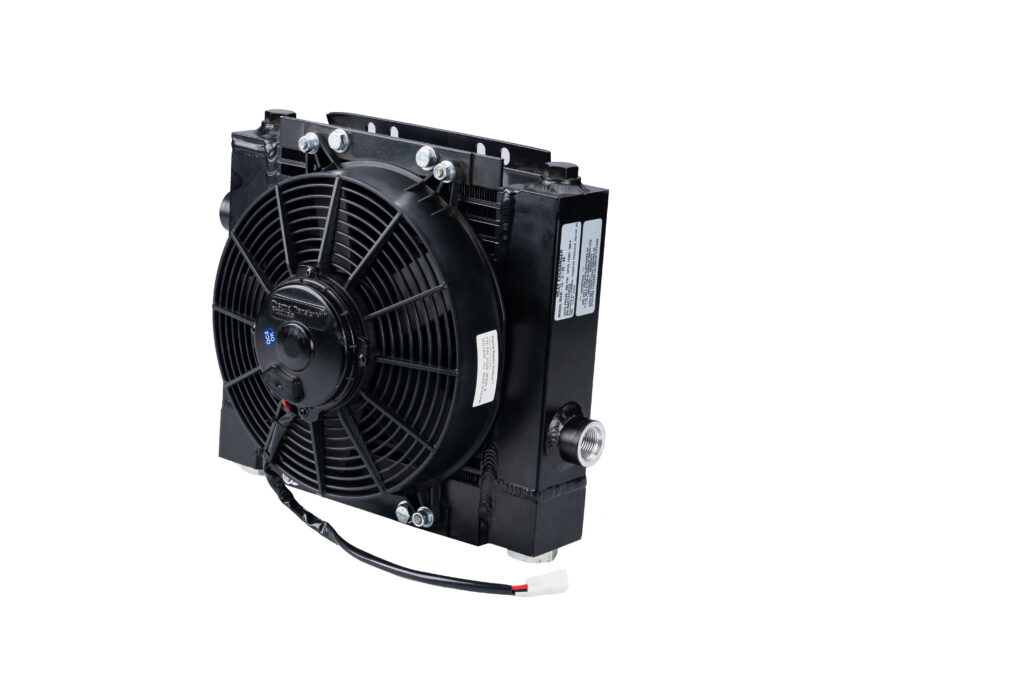

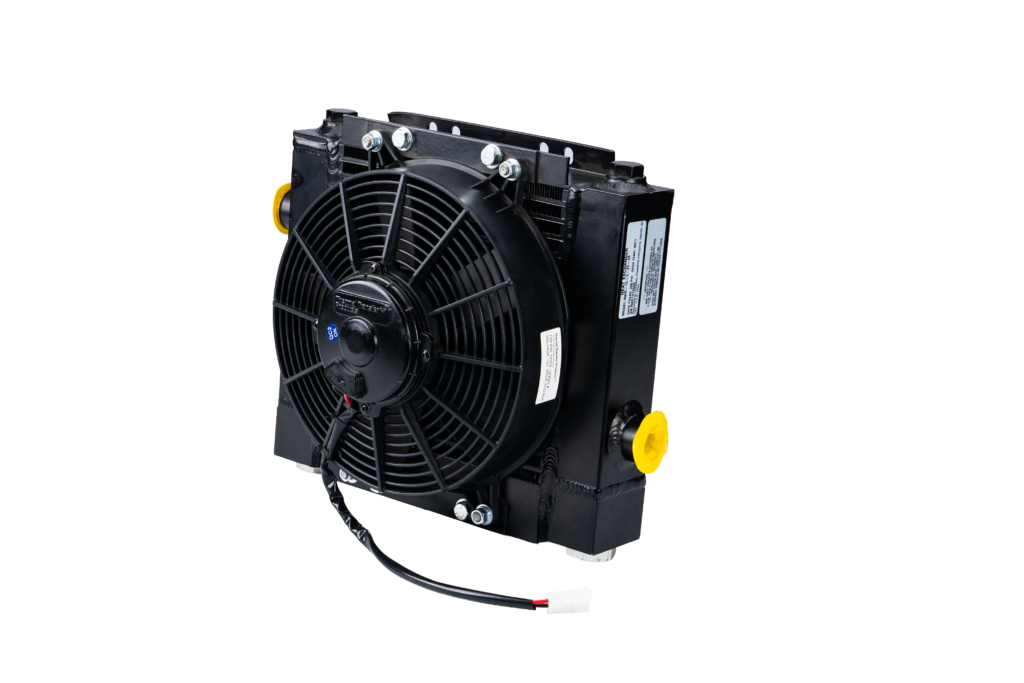

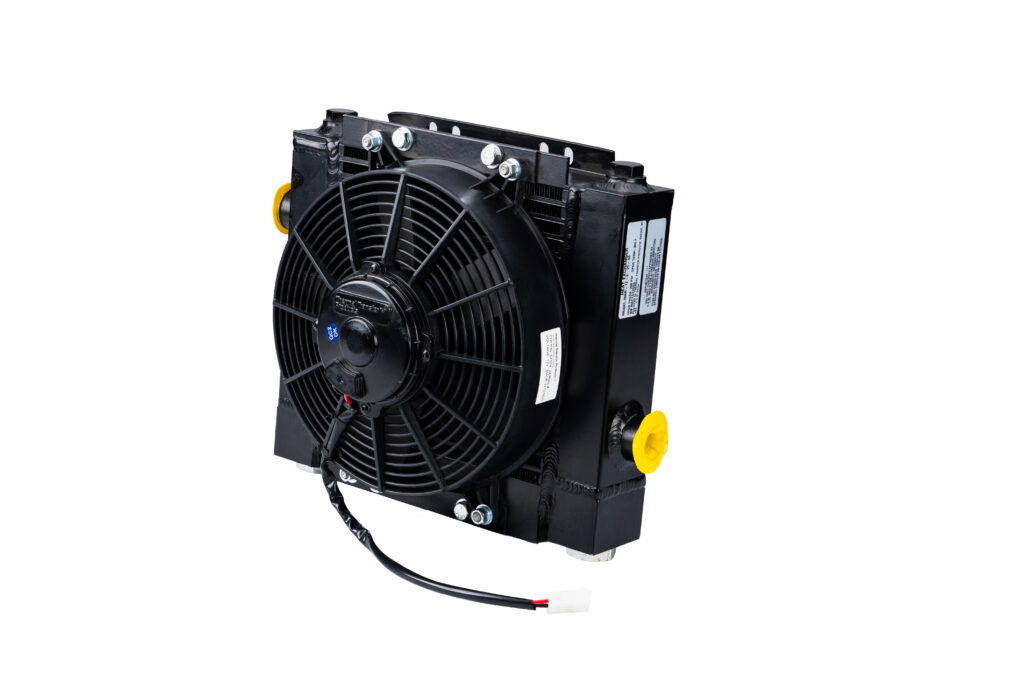

Mobile Air-Cooled Hydraulic Oil Cooler — Brazed Aluminum, 12/24V DC
The Thermal Transfer Products MA Series is a rugged, high-performance air-cooled hydraulic oil cooler built for demanding mobile equipment cooling applications. It uses TTP’s proven brazed aluminum plate-and-bar core, engineered with an aggressive turbulator that produces ultra-high heat transfer in a compact, vibration-tolerant package suited to off-highway and mobile machinery.
You can select from a broad line of standard units as a core only — for integration into an existing cooling package — or as a complete fan pack. Fan-optioned units come with 12- or 24-volt DC or brushless DC axial fans. The brushless motor option delivers extended service life, a minimal electrical load at over 82% efficiency, custom fan-speed control, and lower ambient noise — important where battery draw and cab noise matter.
For temperature control, add the MAGHEX programmable fan controller and sensor: an easy-to-install, low-cost alternative to complex control systems that cycles the fan to hold target oil temperature. TTP’s XSelector® sizing program — available online and as a mobile app — helps optimize model selection for your flow rate, heat load, and available space.
Consult catalog for additional sizes and technical information.
Product Features
- Bar and plate brazed aluminum core
- Rugged, lightweight and compact
- Provides the best heat transfer per given envelope size while minimizing pressure drop
- Air-side fin design minimizes fouling and static pressure ensuring long-term, reliable performance
- Welded aluminum fittings/ports and manifolds ensure structural integrity
- Standard SAE ports, NPT and BSPP ports available
- Internal bypass helps reduce bypass time in cold start applications
- Brushless DC fan motors
- Fans compliant with IP 68 (brushed) and IP6k9k (brushless) with fully sealed motors
- Customized units are available to meet your specific performance requirements
- Brushless DC option for longer life and lower electrical load; optional speed control for noise and efficiency tuning
- Sealed fan motors (IP68/IP6K9K) for harsh mobile environments.
| Ratings | |
|---|---|
| Maximum Operating Pressure | 250 PSI |
| Maximum Operating Temperature | 300°F |
| MA Core Ratings | |
|---|---|
| Heat Rejection | From 19,000–360,000 Btu/Hr (≈7–142 HP) |
| Flow rate | 3–110 GPM |
| MA Fan Option Ratings | |
|---|---|
| Heat Rejection | From 6,000–160,000 Btu/Hr (≈2–63 HP ≈1.8–47 kW)) |
| Flow rate | 3–110 GPM |
| Materials | |
|---|---|
| Core | Brazed Aluminum Bar and Plate |
| Connections | Aluminum |
| Core Mounting Bracket | Aluminum |
| Fan Shroud | Steel |
| Fan | Plastic Composite |
| Configuration | |
|---|---|
| Fluid Compatability | Petroleum/mineral oils Oil/water emulsion Water/ethylene glycol |
| Standard ports, NPT and BSPP ports available | SAE |
| Sealed fan motors | (IP68/IP6K9K) for harsh mobile environments |
| Brushless DC fan motors | |
| Product Options | |
|---|---|
| Brushless DC fan motor | |
| Serviceable internal pressure or temperature/pressure bypass | |
| Temperature sensors | |
| Port options | SAE NPT BSPP |
| Brushless DC option for longer life and lower electrical load; optional speed control for noise and efficiency tuning | |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures
MA/MAR Series
Brochures
MA/MAR Accessories
Brochures
Brushless Fan Sell Sheet
Brochures
MAR/BOLR Bypass Sell Sheet
Service Parts
MA Series Service Parts
Frequently Asked Questions
It’s a rugged air-cooled hydraulic oil cooler from Thermal Transfer Products, built on a brazed aluminum plate-and-bar core and designed for demanding mobile equipment cooling applications.
Both. You can order standard units as a core only for integration into an existing package, or as a complete unit with a DC fan.
12- or 24-volt DC axial fans, or a brushless DC option. The brushless motor offers extended life, a minimal electrical load at over 82% efficiency, custom fan-speed control, and lower ambient noise.
On mobile equipment, it reduces electrical load on the vehicle’s system, runs quieter, lasts longer, and allows fan-speed tuning for efficiency and noise — advantages that matter when running off a battery or alternator.
A programmable fan controller and sensor that mounts to the cooler and cycles the fan to maintain a target oil temperature — a simple, low-cost alternative to complex control systems, set up with the MAGHEX magnetic wand.
Both use brazed aluminum bar-and-plate cores, but the MA Series is built for mobile equipment with DC/brushless fan options, while the BOL/BOLR Series is an industrial line with AC or hydraulic fan motors.
Yes, the DH Series is suitable for diesel-powered hydraulic systems. But it depends on heat to reject. MA Fan Option removes up to ~63 HP of heat; MA Core Only (using vehicle/engine airflow) removes up to ~142 HP. Calculate heat ≈ hydraulic input power × (1 − efficiency).
If the result is within those limits and 3–110 GPM flow, MA is suitable; otherwise select a higher-capacity cooler via XSelector® or contact Application Engineering.
Use fan pack when dedicated airflow is needed; use core-only when adequate vehicle airflow is available.
