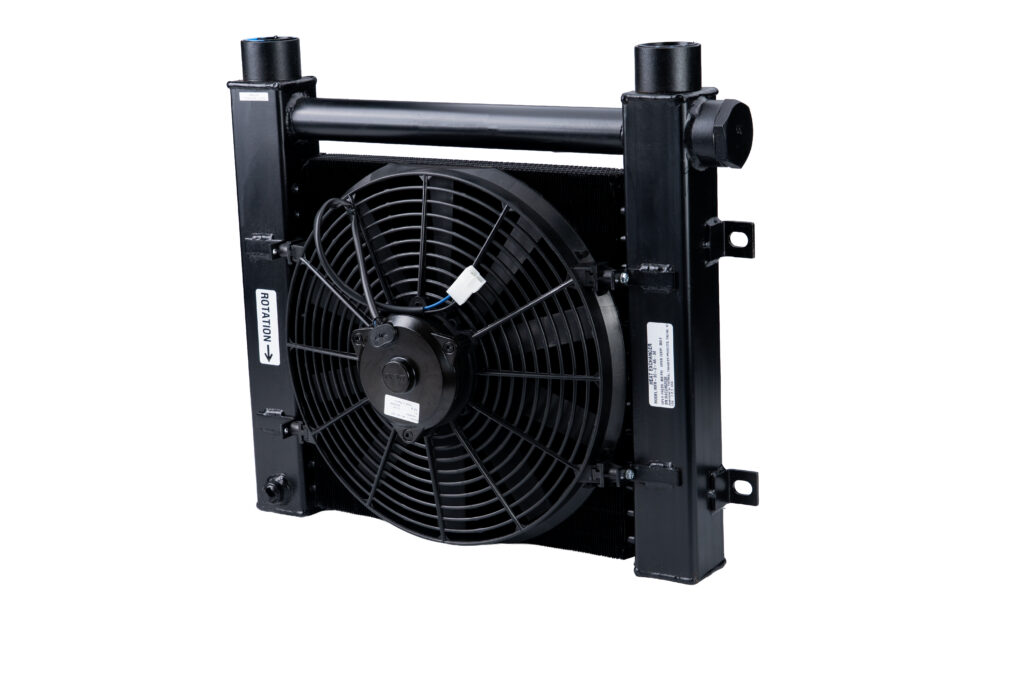

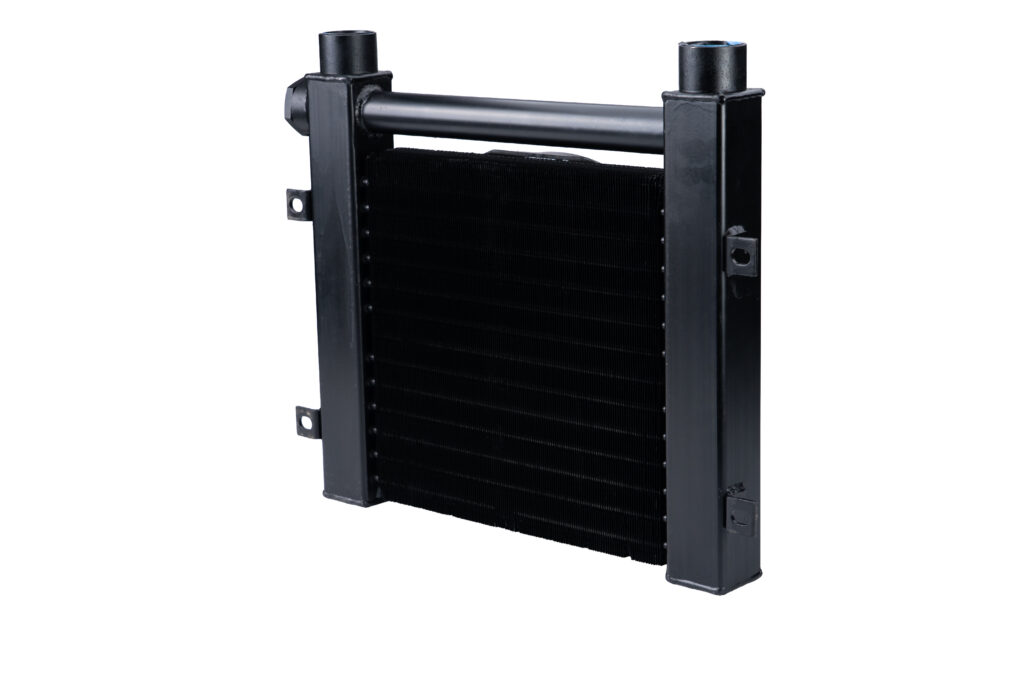

Mobile Air-Cooled Oil Cooler with DC or Hydraulic Fan Drive
The Thermal Transfer Products Mobile MF Series is a self-contained, air-cooled hydraulic oil cooler for mobile equipment — the rugged M Series core with an integral fan drive added, so it doesn’t depend on radiator or engine airflow. You can specify a low-amp-draw DC motor or a long-life hydraulic fan motor to match the power available on the machine.
Its robust, off-highway-grade construction uses a steel manifold, copper tubes, and aluminum fins, and high/low turbulators optimize heat rejection even at lower flow rates. An optional serviceable internal pressure bypass provides cold-start protection and can be removed for service without disturbing the plumbing. The MF is well suited to higher-pressure mobile hydraulic applications where a dedicated fan is needed rather than relying on engine airflow.
Common applications include hydraulic oil, fuel, and transmission cooling on construction, agriculture, forestry, and material-handling equipment. TTP’s XSelector® sizing program — available online and as a mobile app — helps size the right MF model for your flow, heat load, and available power.
Consult catalog for additional sizes and technical information.
Product Features
- High strength construction
- Rugged steel manifolds
- 3/8″ Tube size
- Aluminum fins
- Low amp draw 12 or 24 volt DC motor

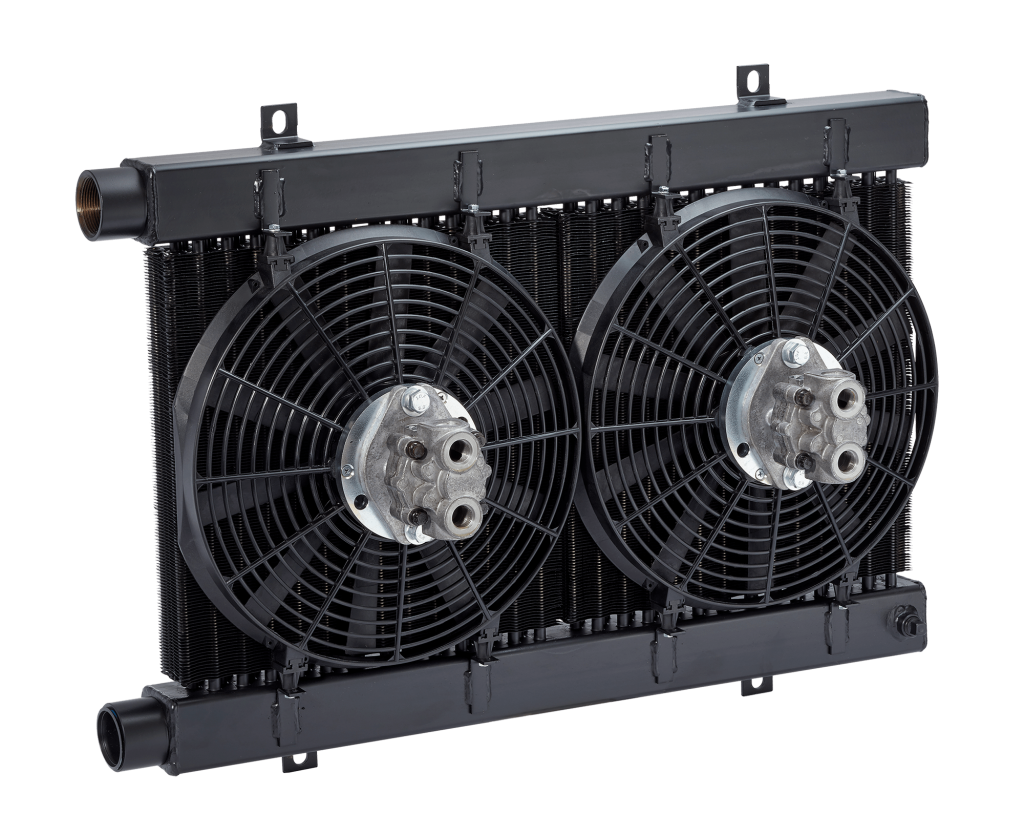

- Long life hydraulic motors
- Eliminate piping, reduce cost with optional internal pressure bypass
- Mounting brackets included
| Ratings | |
|---|---|
| Maximum Operating Pressure | 300 PSI |
| Test Pressure | 300 PSI |
| Maximum Operating Temperature | 350°F |
| Heat Rejection | Up to 20 HP (15 KW) |
| Oil Flow | Up to 150 GPM (330 LPM) |
| Hydraulic Motor Ratings | |
|---|---|
| Motor Displacement | .22in3/Rev. |
| Maximum Pressure | 2000 PSI |
| Allowable Backpressure | 1000 PSI |
| Materials | |
|---|---|
| Tubes | Copper |
| Fins | Aluminum |
| Turbulators | Steel |
| Manifolds | Steel |
| Fan Assembly | High Impact Plastic |
| Configuration | |
|---|---|
| Tube size | 3/8″ |
| Mounting brackets included | |
| Product Options | |
|---|---|
| Connection options | SAE NPT |
| Internal pressure bypass | |
| Fan control switch | |
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector®App.
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status.
- Custom designs are available
* To register for XSelector® please go to www.thermaltransfer.com/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
Documents
Brochures
MF Series
Brochures

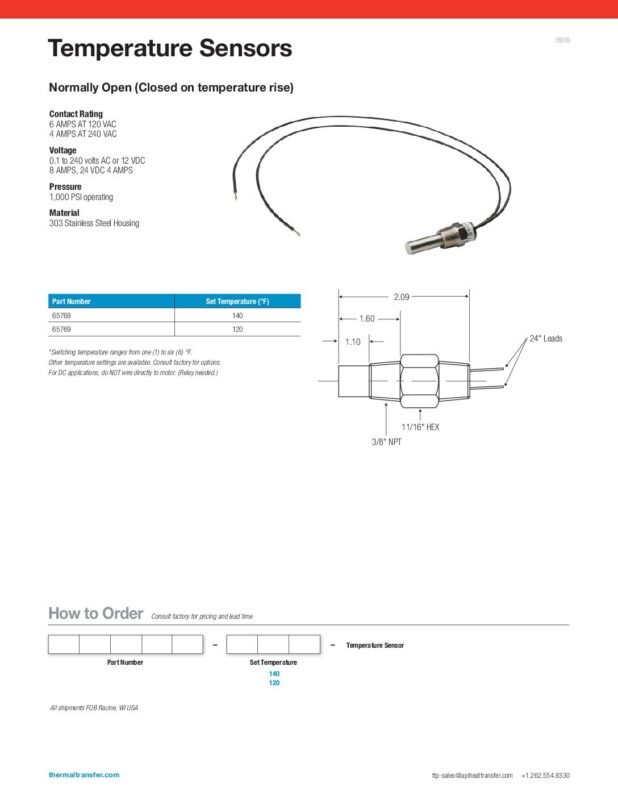

MF Accessories
Technical

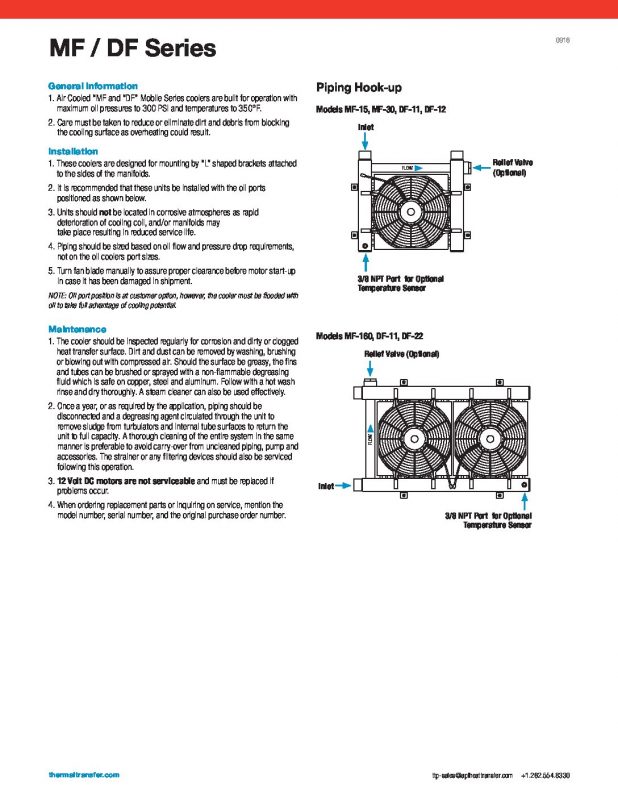

MF Technical Information
Service Parts

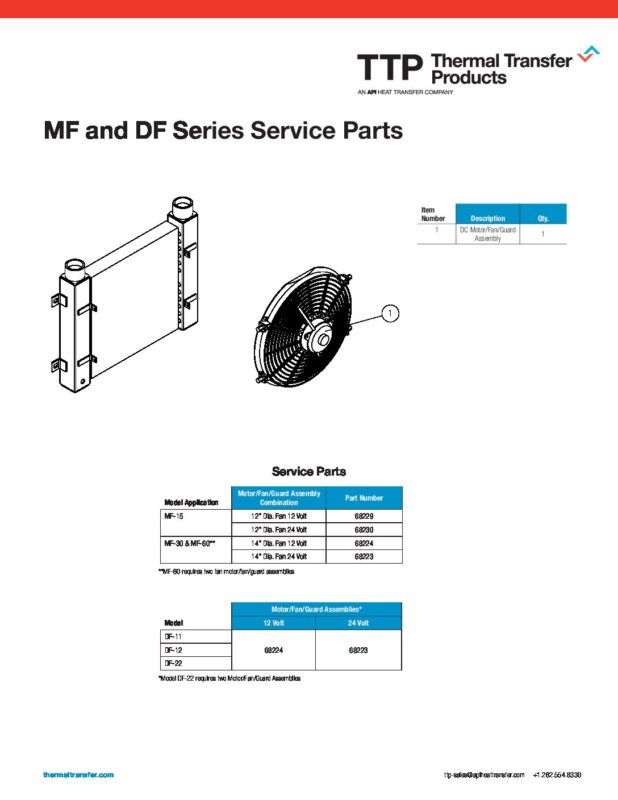

MF DF Series Service Parts
Frequently Asked Questions
It’s an air-cooled mobile hydraulic oil cooler from Thermal Transfer Products — the M Series core fitted with its own DC or hydraulic fan drive, for cooling oil, fuel, or transmission fluid on mobile equipment.
The M Series is a fan-less core that mounts to a radiator or engine cooling module and uses existing airflow. The MF adds a low-amp-draw DC motor or long-life hydraulic fan, so it provides its own airflow and can mount independently. Choose the M core when engine airflow is available; choose the MF when you need dedicated cooling.
A low-amp-draw DC motor or a long-life hydraulic fan motor, selected based on the power available on the machine.
Its robust steel-manifold, copper-tube construction is built to handle higher operating pressures than lighter mobile cores, making it a good fit for demanding hydraulic circuits.
An optional built-in partial-flow bypass (available in 30 PSI or 60 PSI settings) that protects the cooler during cold starts. It’s removable for service and, being internal, eliminates external bypass piping. Note it’s a partial-flow bypass, not a full-flow system bypass.
All three are fan-equipped mobile coolers. The MF uses the copper-tube M core; the MA uses a brazed aluminum core with DC/brushless fans; the Mobile AOC is the economical copper-tube option. Match to your core preference, capacity, and budget.
Configure the MF Series
3D Configurator
Our 3D Product Configurator will allow you to build up the cooler with specific options that are required for your application, view what you have created in 3D, then download the model directly into your format to complete your modeling project.
